Coding example: 00637

• Radio configuration 5: 0 = standard
• Radio configuration 4: 0 = A8
• Radio configuration 3: 6 = with BOSE and amplifier switch off w/incoming phone call
• Radio configuration 2: 3 = with Navigation and Telephone
• Radio configuration 1: 7 = with diversity, CD changer and multi-function steering wheel

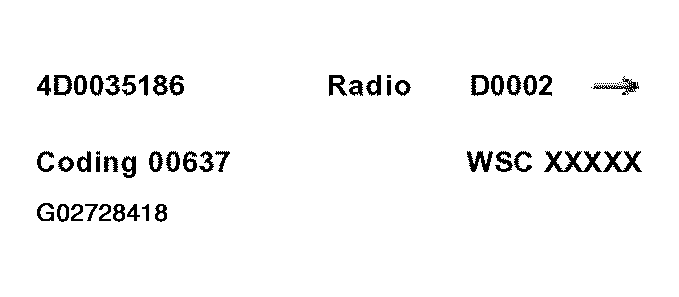

Indicated on display (the control module identification and the coding that was input, 00637)

Fig 1: Identifying Scan Tool Display - Code Control Module, Radio (4 Of 6)

Courtesy of AUDI OF AMERICA, INC.

• Press --> button to end coding.

Indicated on display

Fig 2: Identifying Scan Tool Display - Code Control Module, Radio (5 Of 6)

Courtesy of AUDI OF AMERICA, INC.

• Press buttons -0- and -6- to select "End Output" function 06.

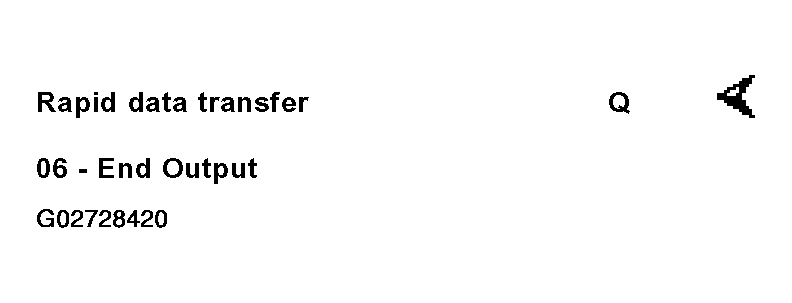

Indicated on display

Fig 3: Identifying Scan Tool Display - Code Control Module, Radio (6 Of 6)

Courtesy of AUDI OF AMERICA, INC.

• Press -Q- button to confirm input.
