Coding example: 0003333

• 000: = not used: always 000 (reserved)
• 3 = Vehicle model: A8
• 3 = Multi-function steering wheel & voice recognition
• 3 = Navigation system IV
• 3 = Radio system: Symphony/BOSE

• Indicated on display (control module identification and coding entered)

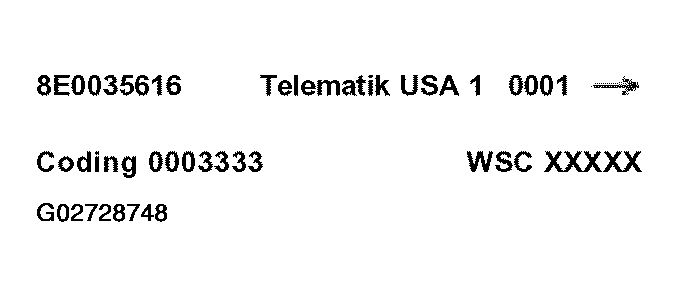

  Fig 1: Identifying Scan Tool Display - Code Control Module, Example (Telematics) (1 Of 4)

  Courtesy of AUDI OF AMERICA, INC.
• Press --> button to end sequence.
• The tester returns to "Select function" mode.

Indicated on display:

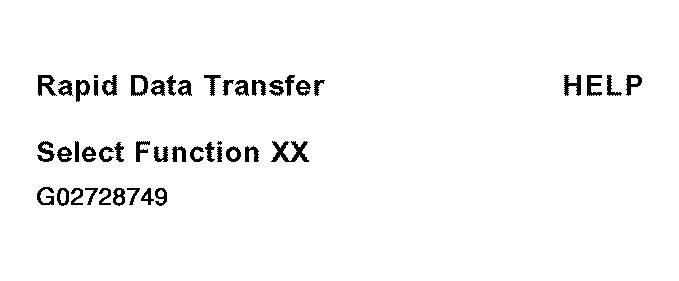

Fig 2: Identifying Scan Tool Display - Code Control Module, Example (Telematics) (2 Of 4)

Courtesy of AUDI OF AMERICA, INC.

• Press buttons -0- and -6- to select "End output" function 06.

Indicated on display:

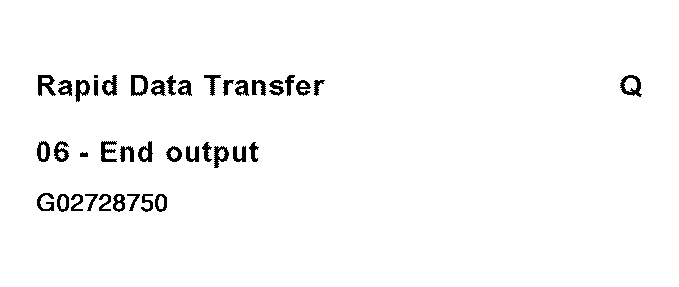

Fig 3: Identifying Scan Tool Display - Code Control Module, Example (Telematics) (3 Of 4)

Courtesy of AUDI OF AMERICA, INC.

• Press -Q- button to confirm input.

Indicated on display

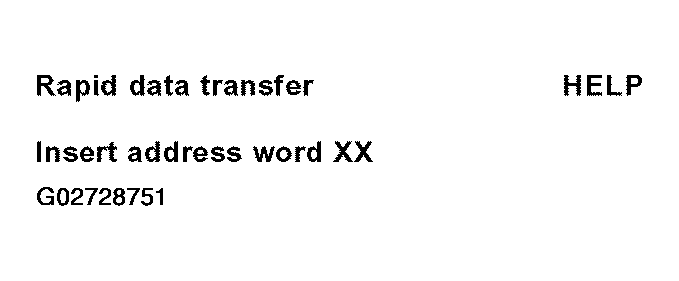

Fig 4: Identifying Scan Tool Display - Code Control Module, Example (Telematics) (4 Of 4)

Courtesy of AUDI OF AMERICA, INC.
