Display group 1: Zeroing the steering angle sensor -G85-
Zeroing of the steering angle sensor -G85- must be accurate to + 5 degrees.
The steering angle sensor -G85- must be zeroed:
- If the ABS Control Module (w/EDL) -J104-, the steering angle sensor -G85-, or the steering column was replaced
- After coding the ABS Control Module (w/EDL) -J104-
- If adjustments were made to the running gear

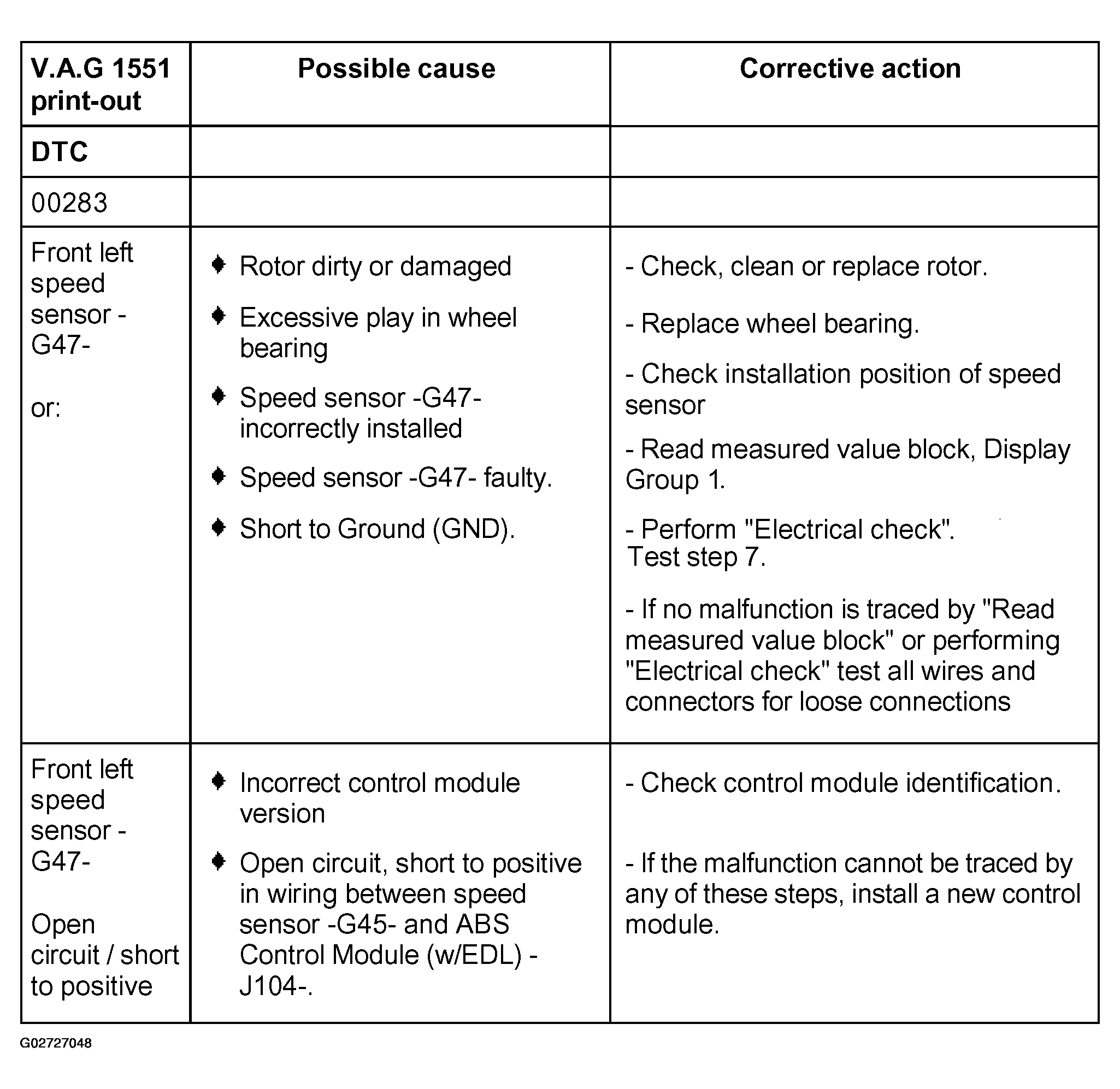

- If you found a DTC in the DTC memory of the ABS Control Module (w/EDL) -J104- and the DTC table indicated the sensor needs to be zeroed.
- Turn the engine on.
- Turn the steering wheel one turn to the right and one turn to the left.
- On a level surface, carry out a short test drive. Drive straight ahead and do not exceed 20 km/h.
- If the steering wheel is level during the test drive, stop the car.
- Zero the sensor (see the page after the next page).
Do not move the steering wheel.
Do not switch ignition off.
or
- If the steering wheel is not level, check the wheel alignment and adjust as necessary. See WHEEL ALIGNMENT PROCEDURES .
- Check the suspension geometry and center the steering according to the operation manual for the alignment machine. This means you adjust the front wheels to face directly ahead.
- Zero the sensor.
Do not move the steering wheel.
Do not switch ignition off.
- Connect VAS5051 tester or VAG1551 scan tool and select the address word 03 "Brake Electronics", see VAG1551 SCAN TOOL (ST), CONNECTING AND ENTERING ADDRESS WORD .

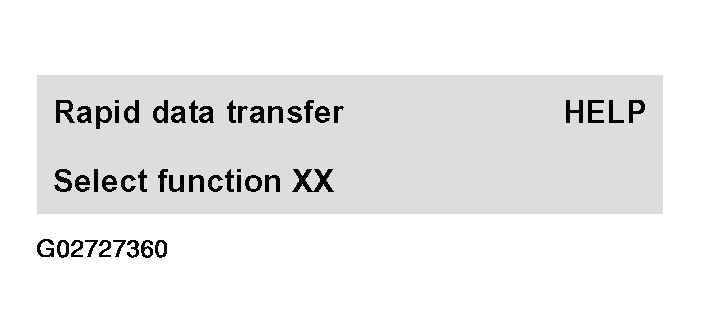

Indicated on display

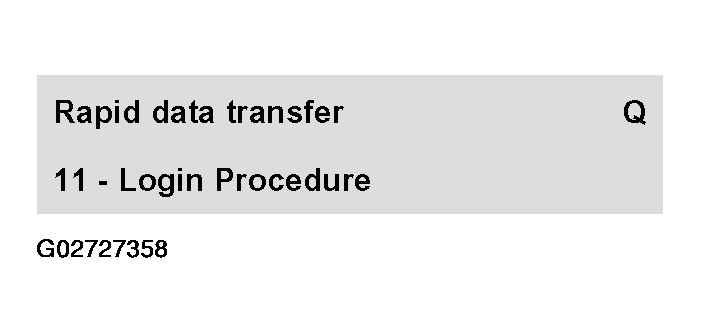

- Press buttons -1- and -1- to select "Login Procedure" function 11.

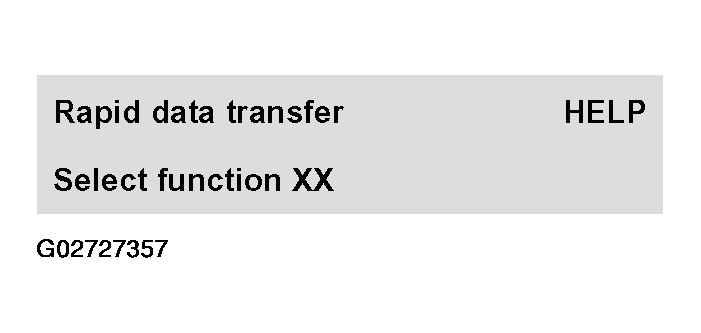

Indicated on display
- Press the -Q- button to confirm input.
Indicated on display

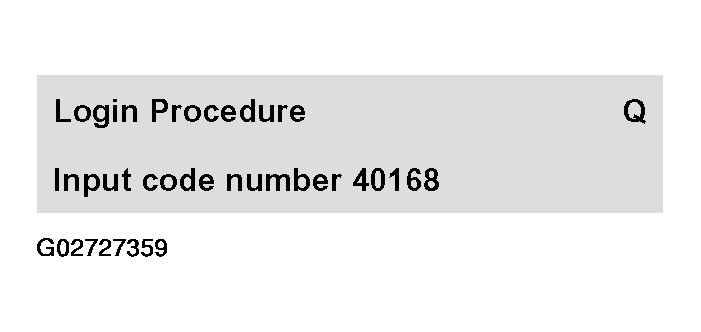

- Press buttons -4-, -0-, -1-, -6- and -8- to input code 40168. Press -Q- button to confirm input.
Indicated on display

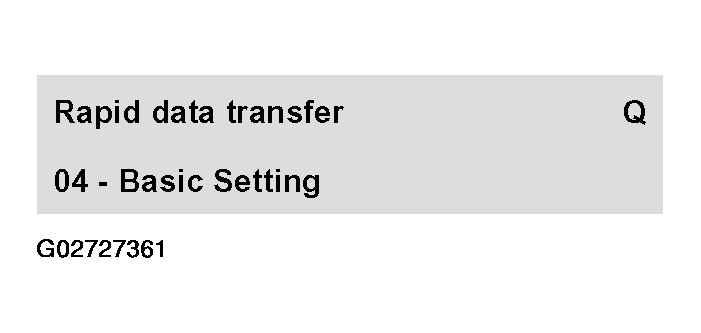

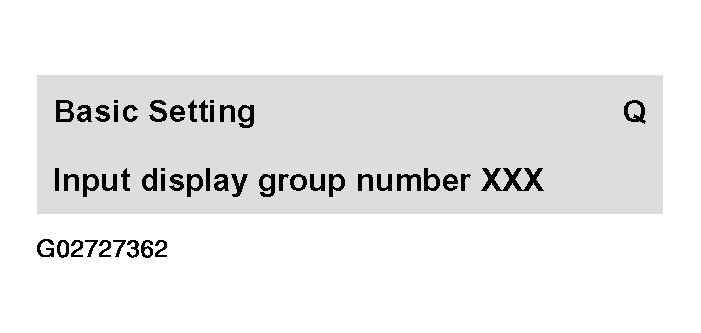

- Press buttons -0- and -4- to select "Basic Setting" function 04.
Indicated on display
- Press the -Q- button to confirm input.
Indicated on display
- Press buttons -0-, -0- and -1-. Press -Q- button to confirm input.

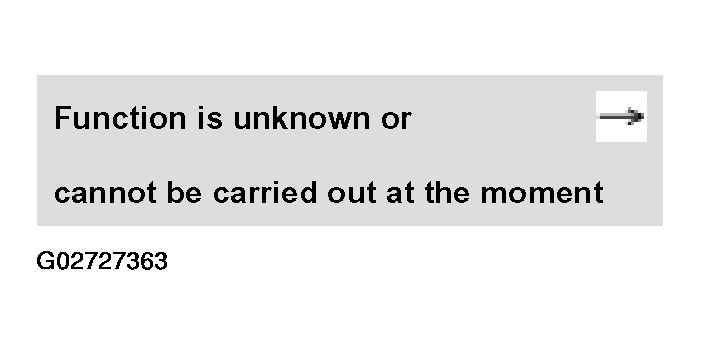

If this appears in display, the "Login Procedure" has not been successfully carried out

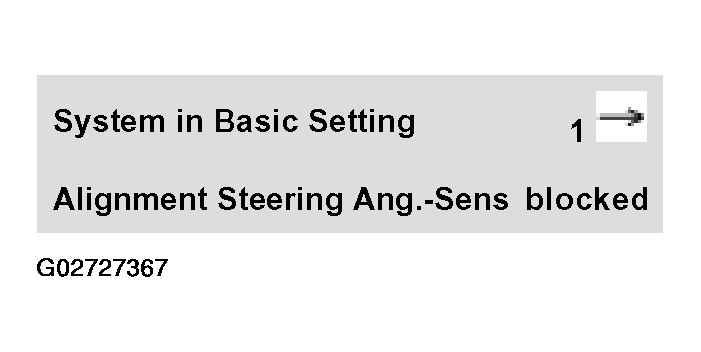

Indicated on display
- Check the zero position using "Read Measuring Value Block" function 08 (see MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08), READING ) and display group 5 (see Figure ).
or
Indicated on display
NOTE:
If message in Fig 9
appears, perform the following sequence.
- Check DTC memory. See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY (SCAN TOOL FUNCTION 02), CHECKING.
- Erase DTC memory. See ERASE DTC MEMORY .
- Switch ignition off.
- Switch ignition on.
- Then repeat zeroing.
- Advance through program sequence by pressing --> button.

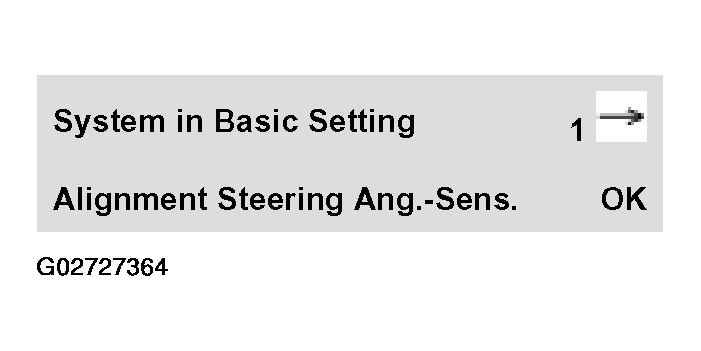

Indicated on display
or

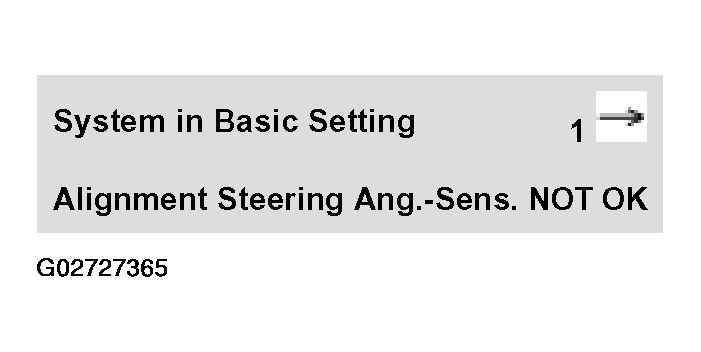

Indicated on display
If the message in Fig 11 appeares, the steering wheel was not rotated one turn to the right and one turn to the left.
- Switch ignition off.
- Switch ignition on.
- Then repeat zeroing.
- Advance through program sequence by pressing --> button.
Indicated on display
