Read Measuring Value Block (function 08): Notes

The current central locking system status can be ascertained using the "Read Measuring Value Block" function.

Starting central locking system On Board Diagnostic (OBD). See CENTRAL LOCKING SYSTEM ON BOARD DIAGNOSTIC (OBD), INITIATING .

Indicated on display:

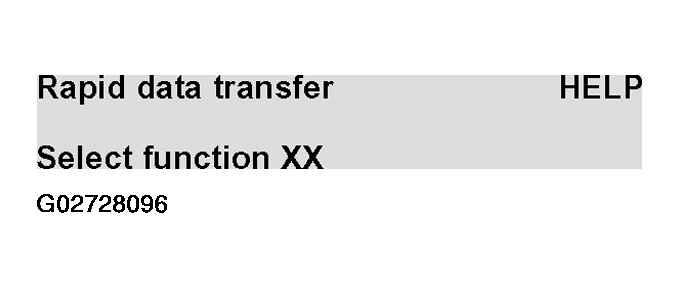

Fig 1: V.A.G 1551 Scan Tool Display - Read Measuring Value Block, Central Locking System (1 Of 4)

Courtesy of AUDI OF AMERICA, INC.

Enter "08" to select the function "Read Measuring Value Block" and confirm entry with Q key.

Indicated on display:

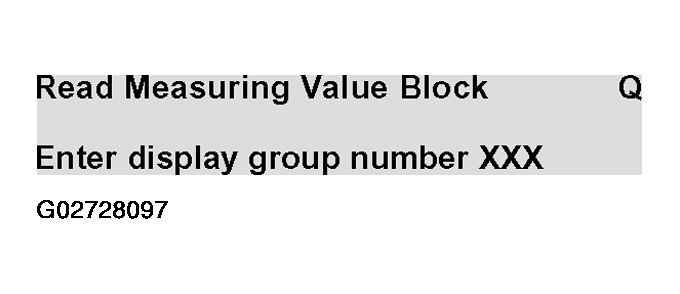

Fig 2: V.A.G 1551 Scan Tool Display - Read Measuring Value Block, Central Locking System (2 Of 4)

Courtesy of AUDI OF AMERICA, INC.

Display for display group 001 (example):

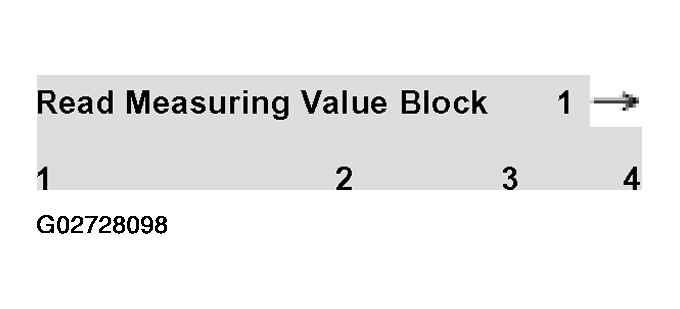

Fig 3: V.A.G 1551 Scan Tool Display - Read Measuring Value Block, Central Locking System (3 Of 4)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display (function selection):

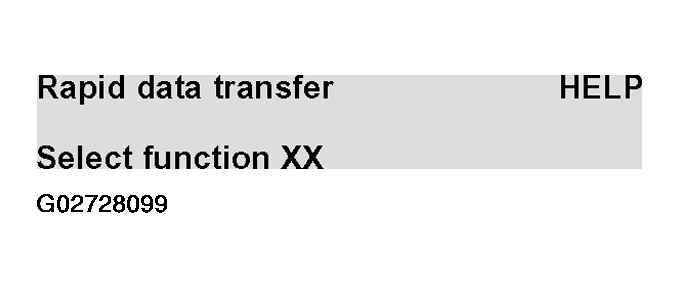

Fig 4: V.A.G 1551 Scan Tool Display - Read Measuring Value Block, Central Locking System (4 Of 4)

Courtesy of AUDI OF AMERICA, INC.
