Test table: display group 2 (002)

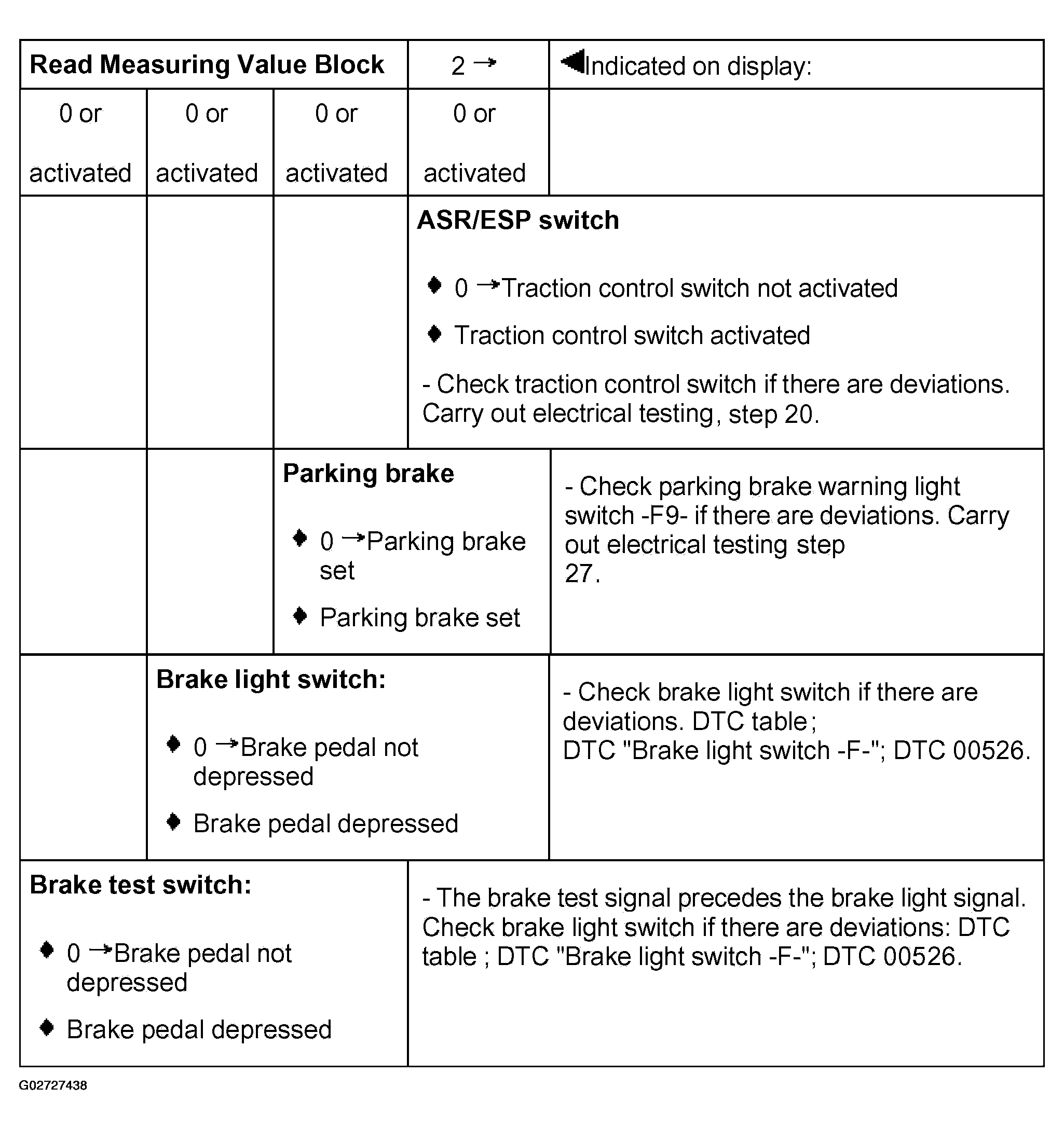

Fig 1: Test Table: Display Group 2 (002) - Bosch 5.3

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .
For the DTC table, see DTC TABLE .

NOTE: The display group numbers can be selected in sequence by pressing buttons <-1 and 3-> on the VAG1551 scan tool, arrow buttons "UP" and "DOWN" on the VAG1552 scan tool, or the arrow buttons "UP" and "DOWN" on the screen of the VAS5051 tester.

Press -C- button to input display group number manually.

Indicated on display

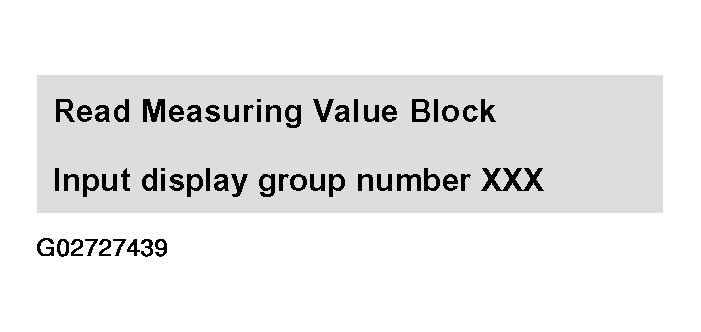

Fig 2: VAG Scan Tool Display - Measuring Value Block, Bosch 5.3 (Input Group Number)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0-, -0- and -3-.
Press the -Q- button to confirm input.

Note for display group 3 (003):

If you want to read the display fields engine speed and actual engine torque with the engine running, you must end the communication between the scan tool and the control module by selecting the "End Output" function. See END OUTPUT . Start the engine and re-initiate communication between the scan tool and the control module.

Indicated on display

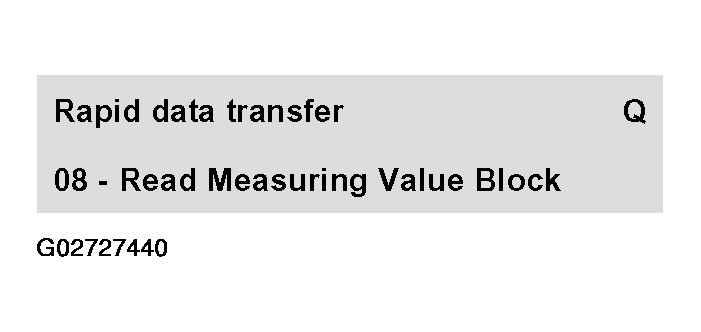

Fig 3: VAG Scan Tool Display - Measuring Value Block, Bosch 5.3 (08-Read Measuring Value Block)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -8- to select "Read Measuring Value Block" function 08.
Press the -Q- button to confirm input.

Indicated on display

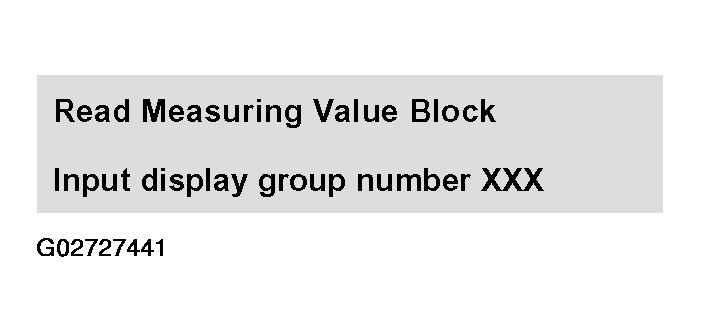

Fig 4: VAG Scan Tool Display - Measuring Value Block, Bosch 5.3 (Input Group Number)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0-, -0- and -3-.
Press the -Q- button to confirm input.
