Coding A/C control head -E87- (up to index "H")
NOTE:
The compressor manufacturer "Nippondenso" has changed its name to "Denso."
- Code A/C control head -E87- to confirm input.
- Press -Q- button to confirm input.
- Perform basic setting. See BASIC SETTING (FUNCTION 04) .
NOTE:
- Only an A/C control head -E87- identified with index "C" should be installed or will be installed (this version of -E87- can control a Nippondenso A/C compressor without speed sensor -G111-).
- If a new A/C control head -E87- is installed and it is not coded, the display of -E87- blinks (after the ignition is switched on).

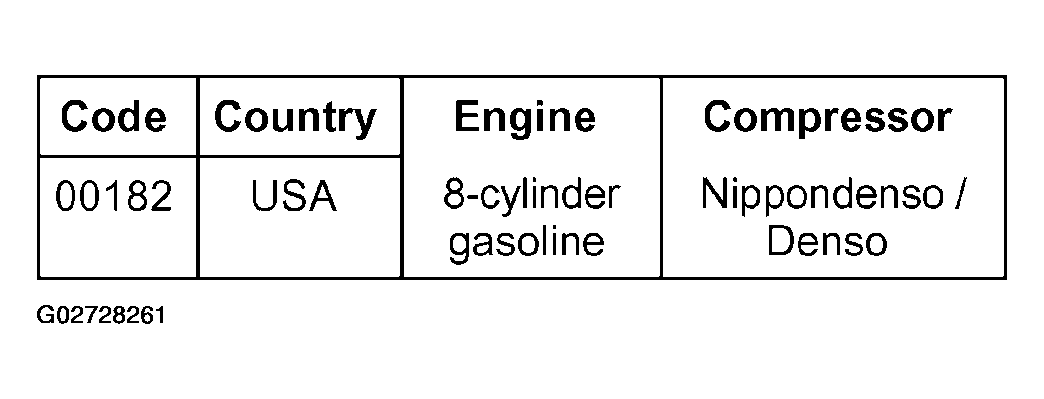

- For assignment of A/C control head -E87-
- All illegal codings are suppressed by A/C control head -E87- and the coding: 00062, 6-cylinder engine USA is stored.
- If another code has been entered other than listed above, compressor will run a short time (shut off immediately).
