Control module, coding (function 07): Requirements

• Selector lever in "P" or "N" position
• Engine off
• Vehicle at a standstill

• Connect VAG 1551, insert "Transmission Electronics" address word 02 and advance through program sequence until "Select function XX" is indicated in display. See ON BOARD DIAGNOSTIC (OBD II), CONDUCTING PROGRAM  .

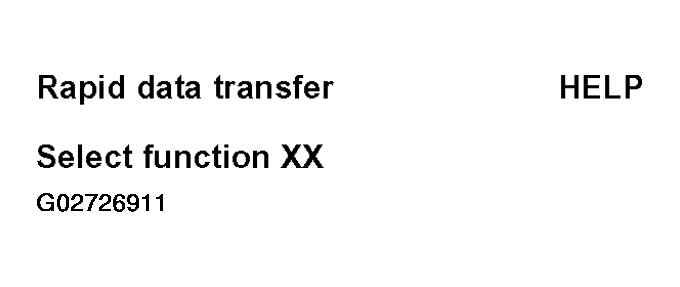

Indicated on display

• Press buttons -0- and -7- to select "Code Control Module" function 07.

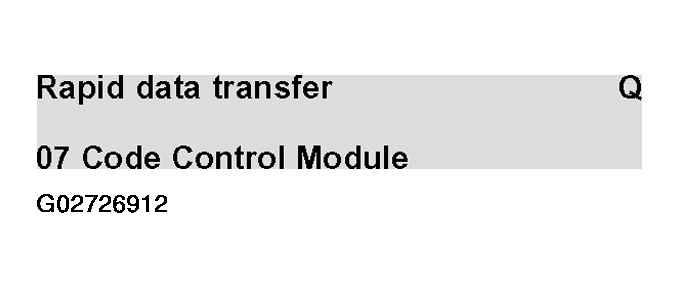

Indicated on display

• Press -Q- button to confirm input..

Indicated on display

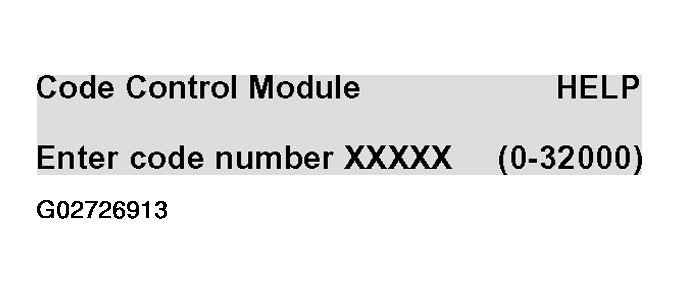

• Enter code from table below.

Coding	Function
00010	DSP not active; transmission shifts according to defined characteristic curve (not meant for service)
00000	DSP(1) active
(1) Dynamic shift program: optimal adjustment of transmission shift characteristics according to driving conditions.

• Press -Q- button to confirm input.

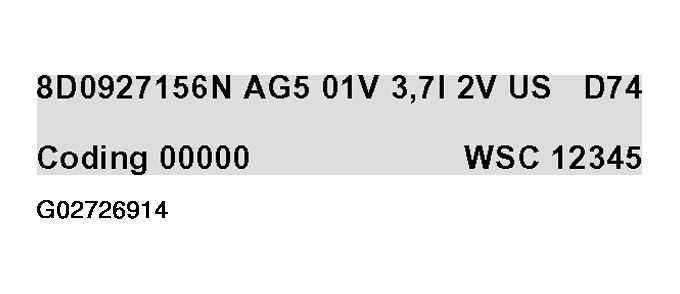

Indicated on display (control module identification). The new code which was entered is indicated.

• Check control module identification to make sure coding was successful.
• Press --> button.

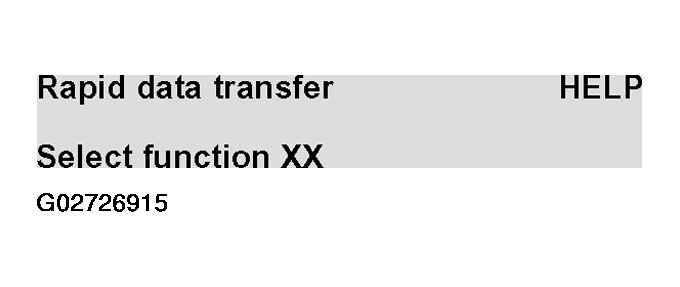

Indicated on display
