Multi-function steering wheel through m.y. 2001, layout

NOTE: The following list refers to Fig 1.

1. Instrument cluster with display
   • In instrument panel
2. Radio -R-
   • In center instrument panel
3. CD Changer Unit -R41- (optional)
   • In left rear luggage compartment storage box
4. Telephone transceiver -R36-
5. Control module for multifunction steering wheel -J453-
   • In 13-position relay carrier below drivers side storage compartment
   • Removing and installing. See CONTROL MODULE FOR MULTI-FUNCTION STEERING WHEEL -J453-, REMOVING AND INSTALLING .
6. Multi-function steering wheel
   • With integrated electronics
   • With integrated operation switches
   • Removing and installing. See MULTI-FUNCTION STEERING WHEEL SWITCHES, REMOVING AND INSTALLING .

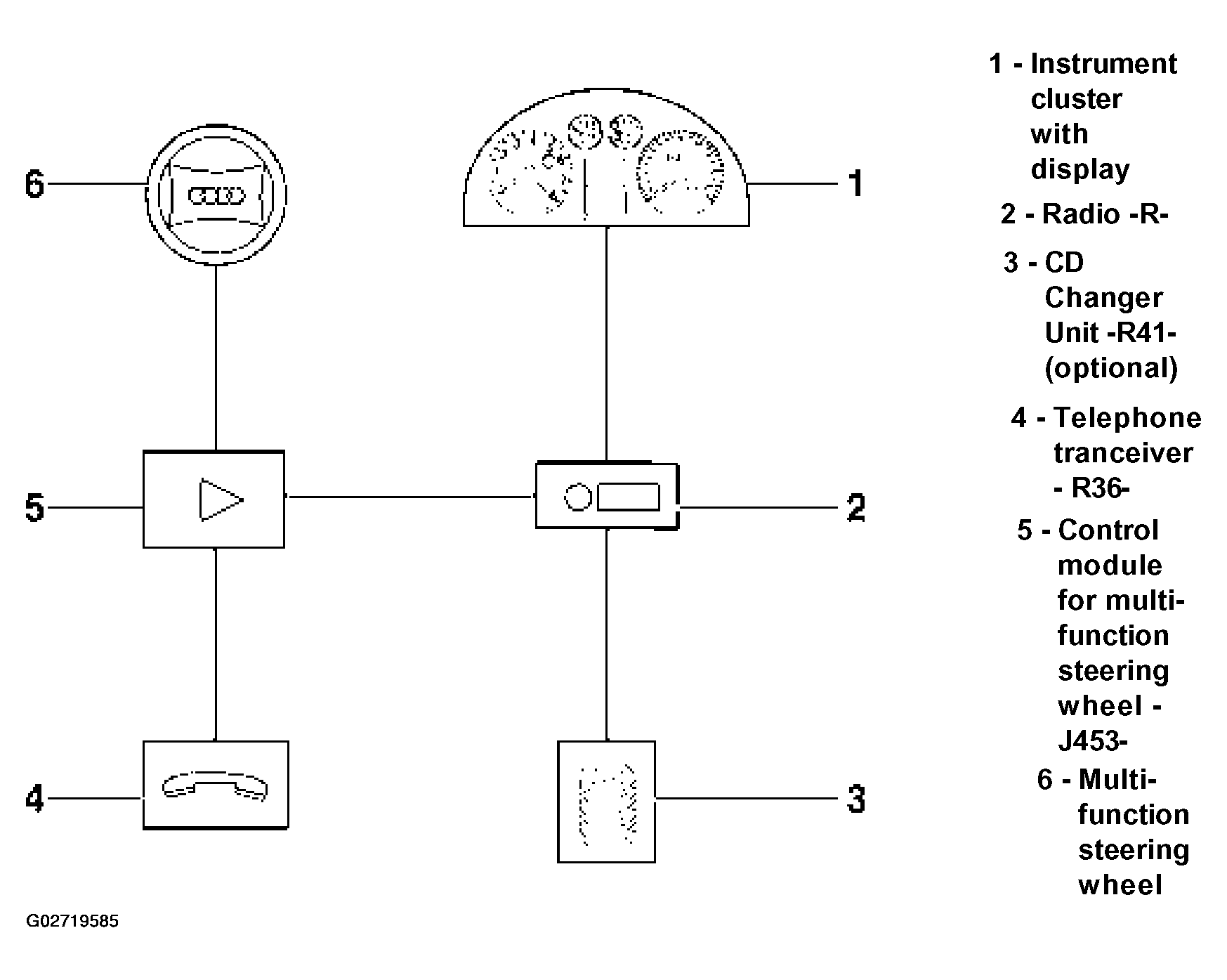

Fig 1: Identifying Multi-Function Steering Wheel Layout, Through M.Y. 2001

Courtesy of AUDI OF AMERICA, INC.
