Vehicles with engine code AHA
Check wires between test box and 3 -pin connector for open circuits according to wiring diagram.
Terminal 1+ socket 37
Terminal 2+ socket 16
Wire resistance: max: 1.5ohm

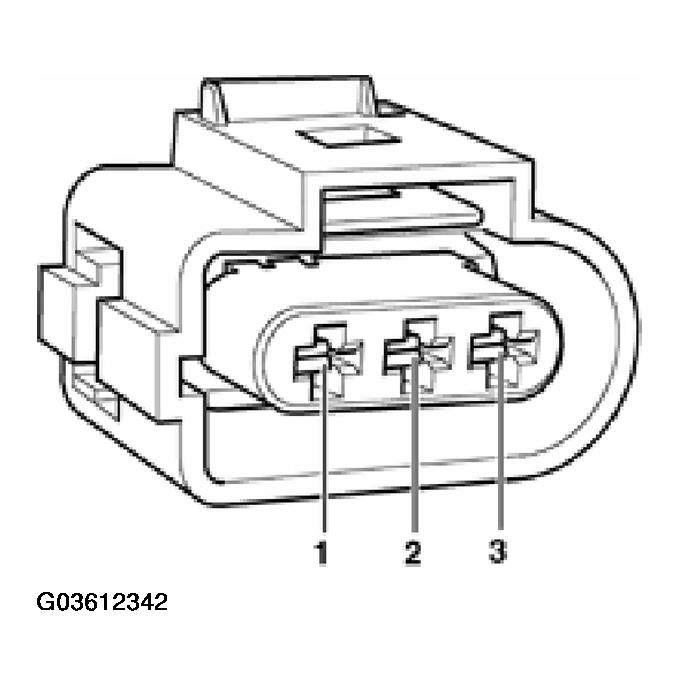

Fig 1: Identifying Leak Detection Pump Harness Connector Terminals
