Test requirements

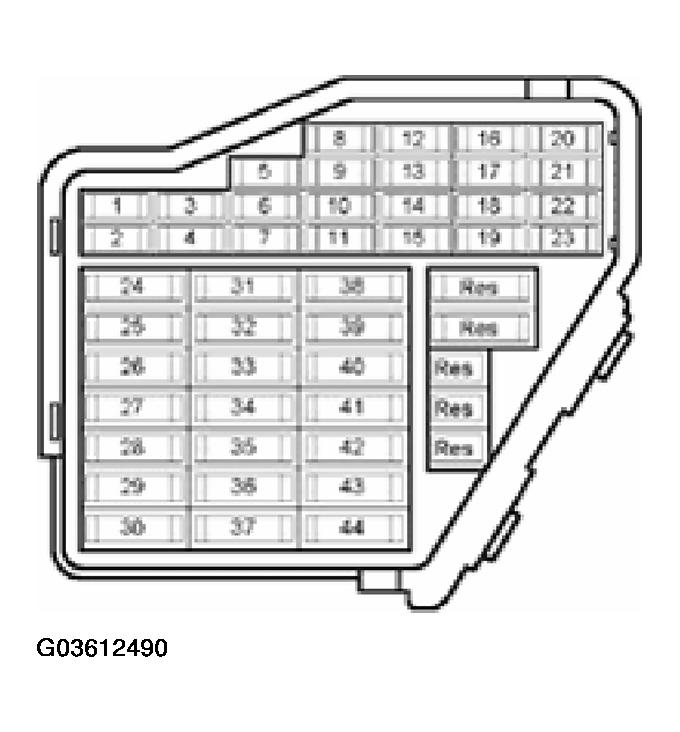

- The respective fuses of the Valve -1- for camshaft adjustment - N205- and Valve -2- for camshaft adjustment -N208- must be OK:
- Fuel Pump (FP) Relay -J17- must be OK, check:
- Battery voltage must be at least 11.5 volts.
- All electrical consumers like, for example, lights and rear window heating must be switched off.
- Parking brake must be engaged or else daylight driving lights will be switched on.
- If vehicle is equipped with an A/C system, it must be switched off.
- Ground (GND) connections between engine and chassis must be OK.
- Ignition switched off.
