Vehicles with engine code AHA
Check wire between test box socket 55 + 2-pin connector terminal 2 for open circuit according to wiring diagram.
Wire resistance: max: 1.5

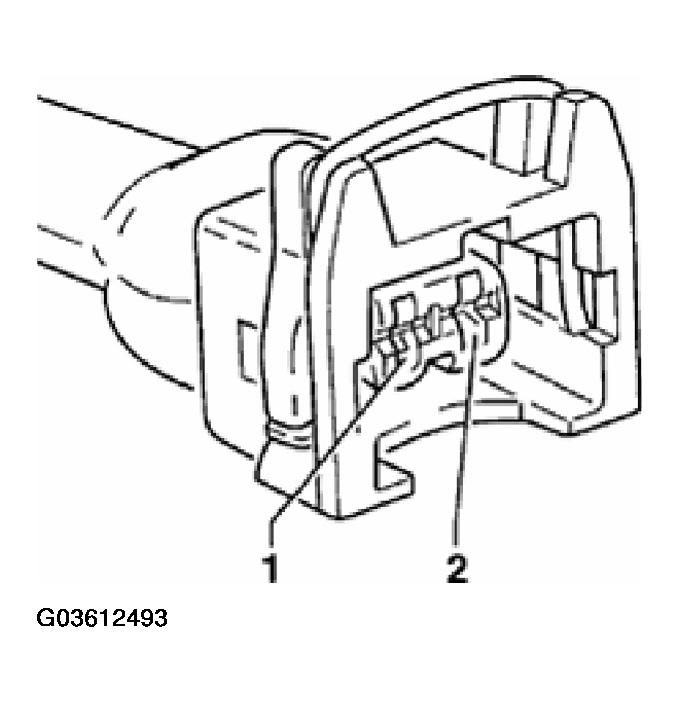

Fig 1: Identifying Camshaft Adjustment Valve Harness Connector Terminals
