Vehicles with engine code AHA

Check wires between test box and 5 -pin connector for open circuit according to wiring diagram.
Terminal 3 + socket 71

Terminal 4 + socket 78

Terminal 5 + socket 70

Wire resistance: max: 1.5 Ω

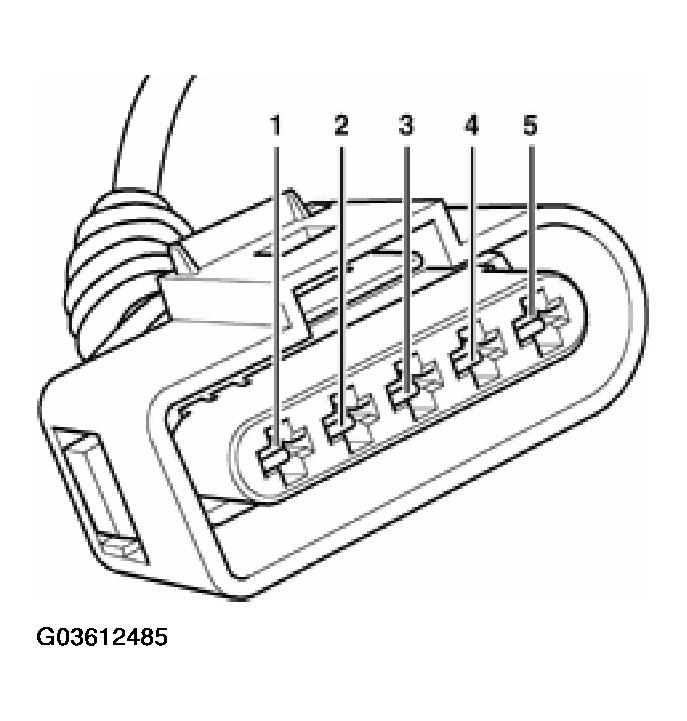

Fig 1: Identifying Ignition Coil Harness Connector Terminals

G03612485
