Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | In left rear corner of engine compartment. |
| Air Bag Control Module | Beneath center of dash, near accelerator pedal. |
| All-Wheel Drive Control Module | On Haldex coupling, on rear differential. |

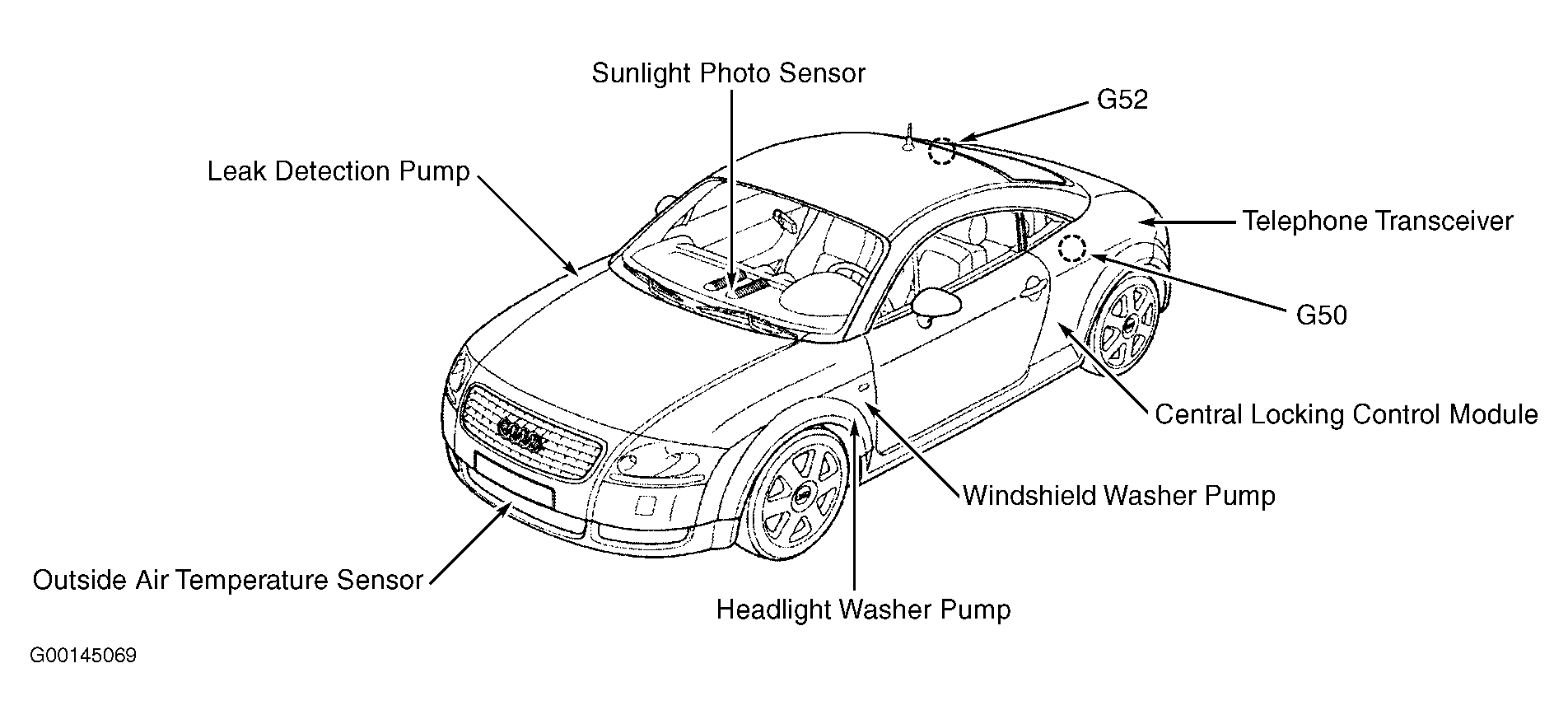

| Central Locking Control Module | Forward of left rear fenderwell, behind panel. See Figure . |
| Coolant Fan Control (FC) Control Module | In lower left front corner of engine compartment. |
| Fresh Air Blower Control Module | Behind right end of dash, on HVAC housing. |
| Headlight Beam Adjusting Control Module | Beneath left side of rear seat. |
| High Intensity Gas Discharge Lamp Control Module (Left/Right) | Below respective headlight, on framerail. |

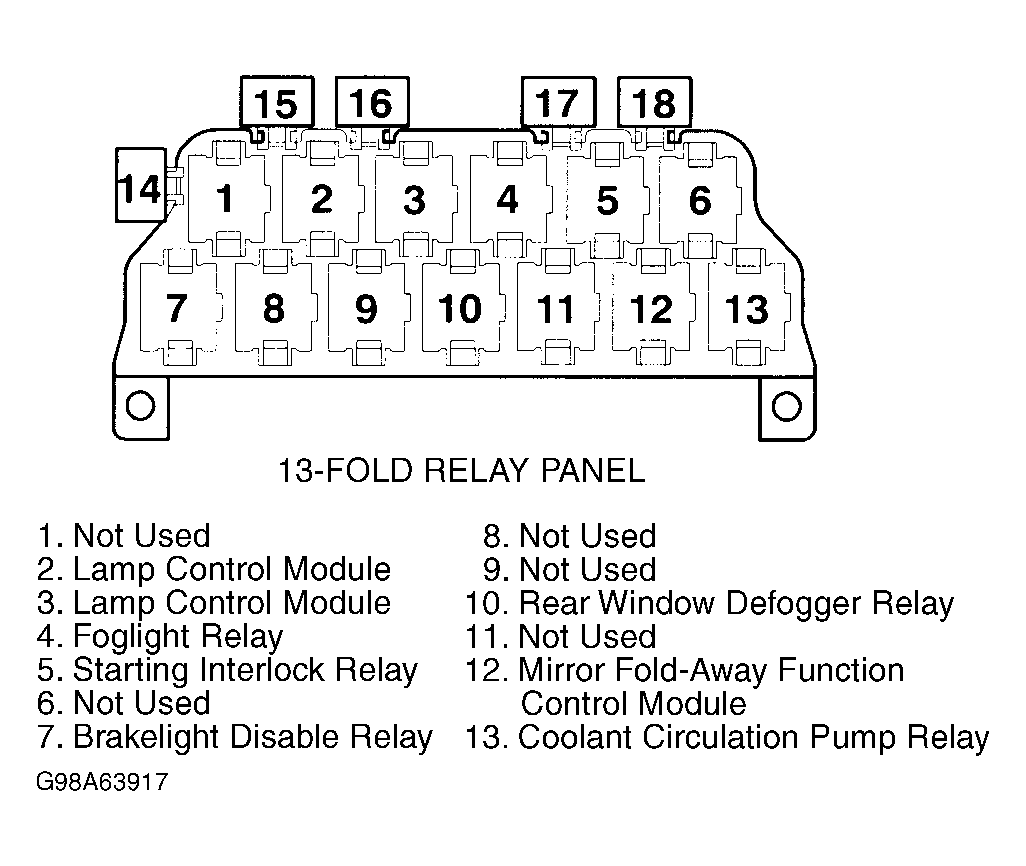

| Lamp Control Module | On 13-fold relay panel. See Figure . |
| Mirror Fold-Away Function Control Module | On 13-fold relay panel. See Figure . |

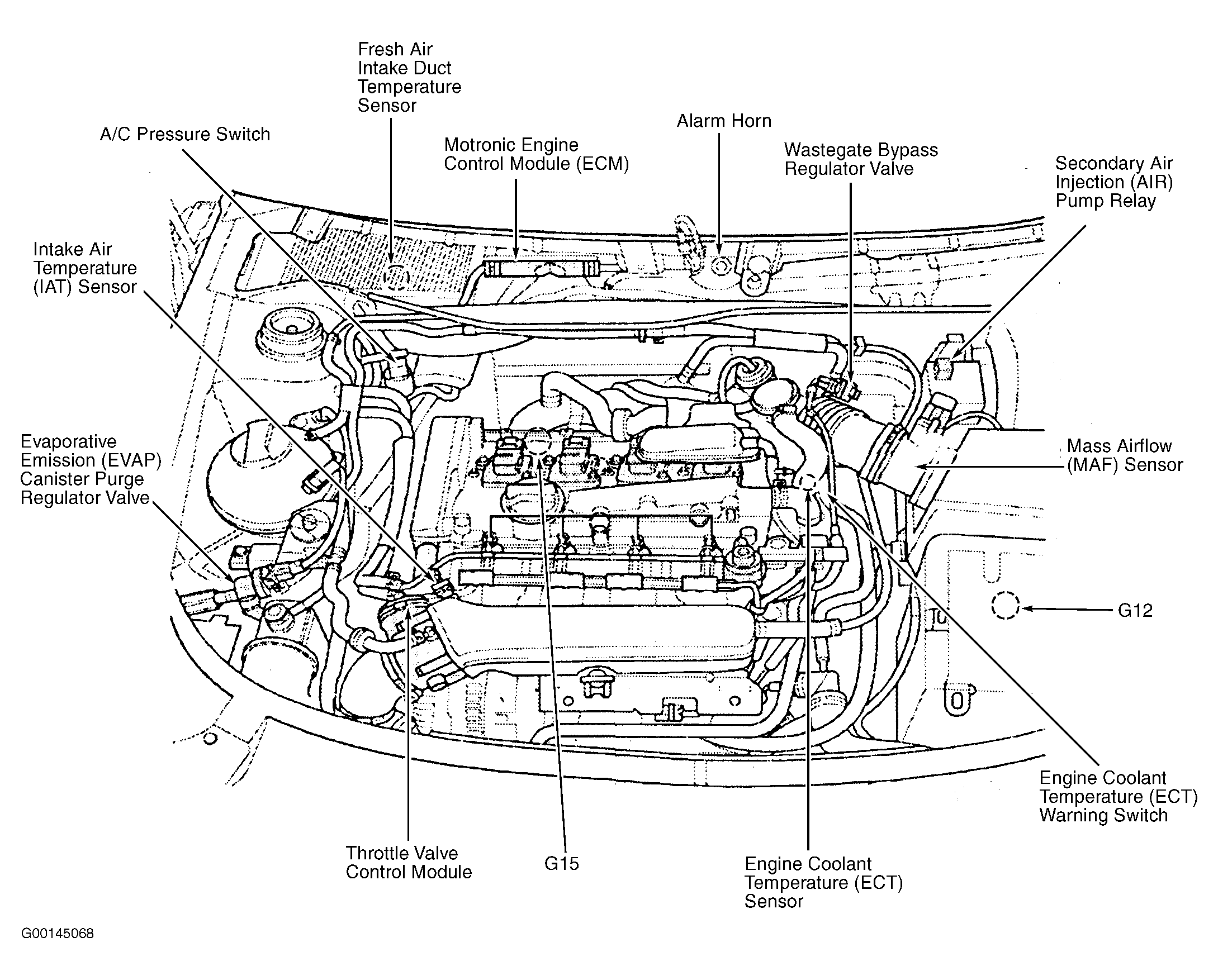

| Motronic Engine Control Module (ECM) | In center of plenum, between firewall and windshield base. See Figure . |
| Power Window Control Module (Left/Right) | In respective door, integral with power window motor unit. |
| Throttle Valve Control Module | On throttle body, on left front of engine. See Figure . |
