Servicing - 02J: Identification: Transaxle

The manual transmission 02J FWD is installed in the Audi TT as a 5-speed transmission in conjunction with the 1.8L 4-cylinder turbo engine. For locating code letters and date of manufacture. See Fig 1. For locating code letters and date of manufacture table. See Fig 2.

NOTE: The code letters of the transmission are also engraved on the vehicle data plates.

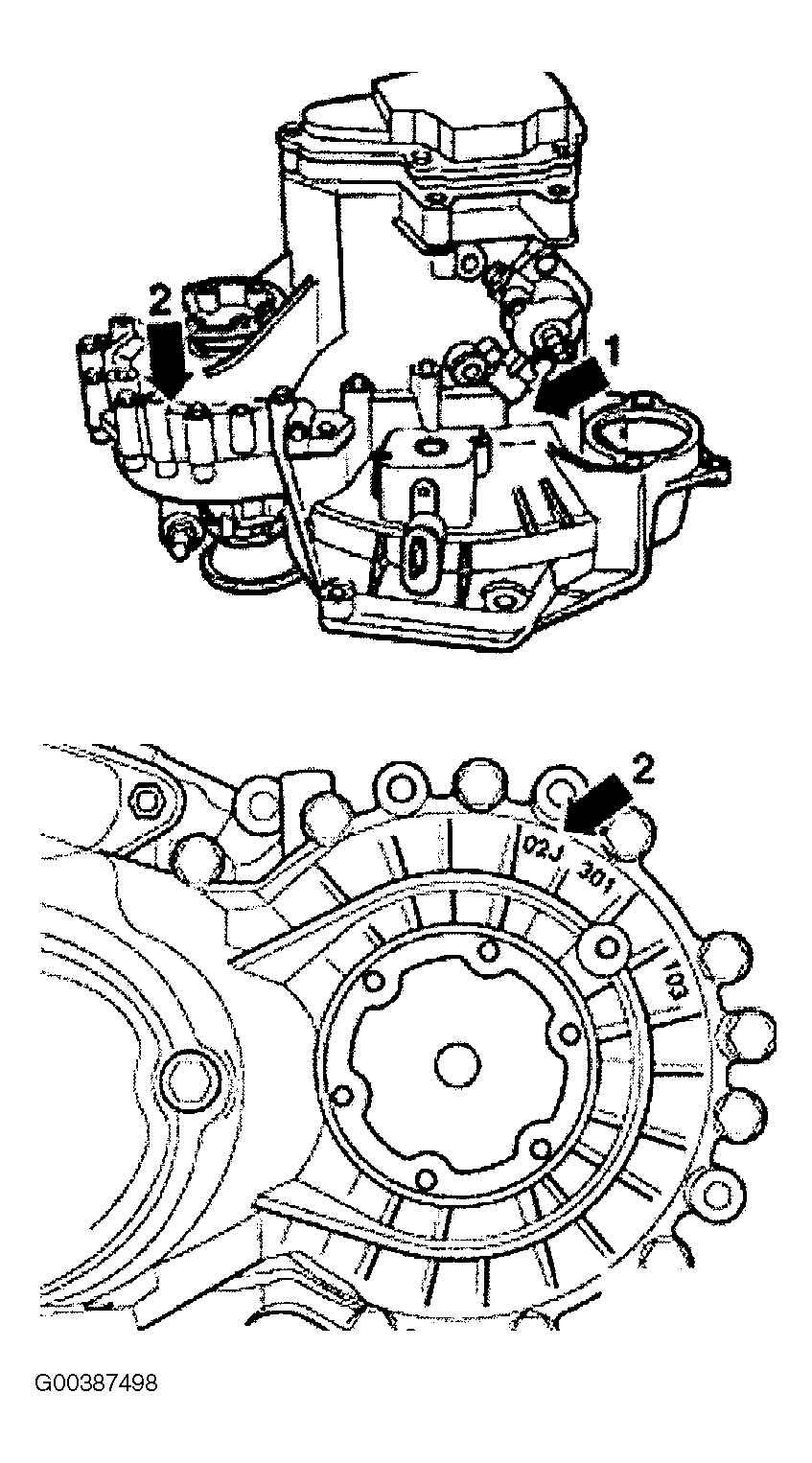

Fig 1: Locating 02J 5-Speed Transaxle Code Letters & Date Of Manufacture

Courtesy of AUDI OF AMERICA, INC.

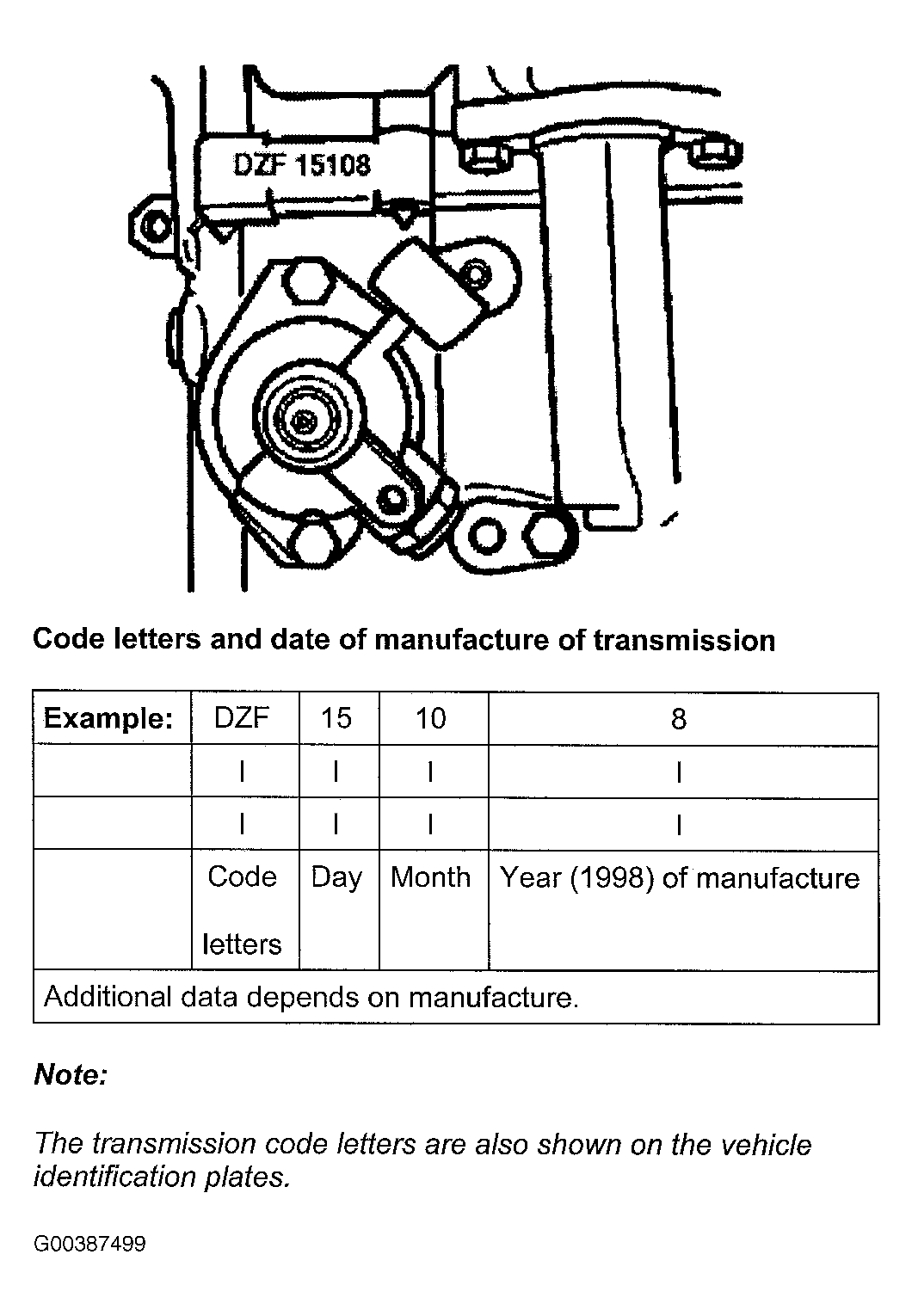

Fig 2: Locating 02J 5-Speed Transaxle Code Letters & Date Of Manufacture Table

Courtesy of AUDI OF AMERICA, INC.
