Shift Mechanism: Notes

NOTE: Lubricate all mountings and sliding surfaces with Polyurea grease (G 052 142 A2).

To identify shifter mechanism components. See Fig 1-Fig 3 . To install fulcrum pin spring for gear shift housing, (item 13 in Fig 2), see Figure.

Fig 1: Identifying Gear Shift Knob & Cover

Courtesy of AUDI OF AMERICA, INC.

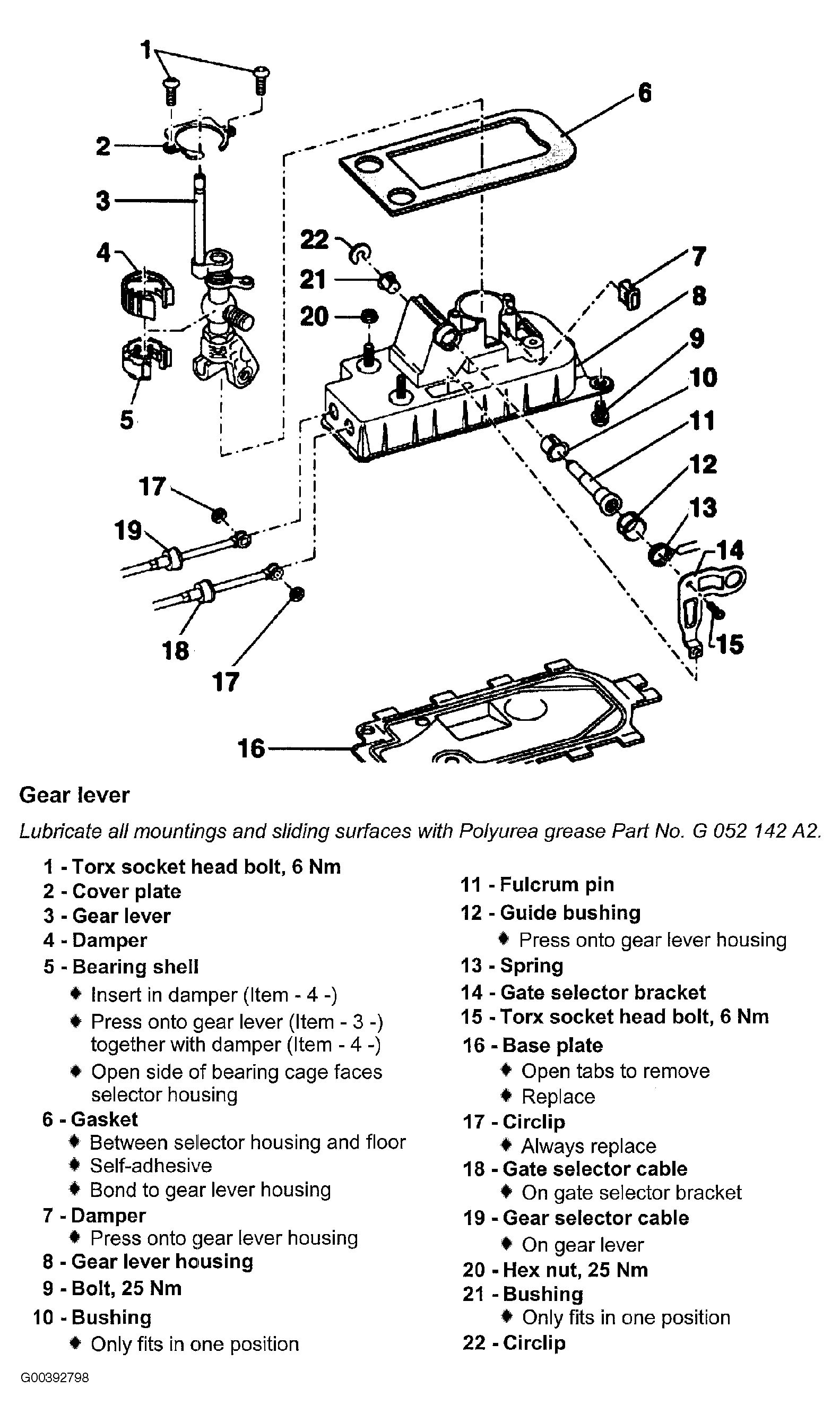

Fig 2: Identifying Gear Lever Components

Courtesy of AUDI OF AMERICA, INC.

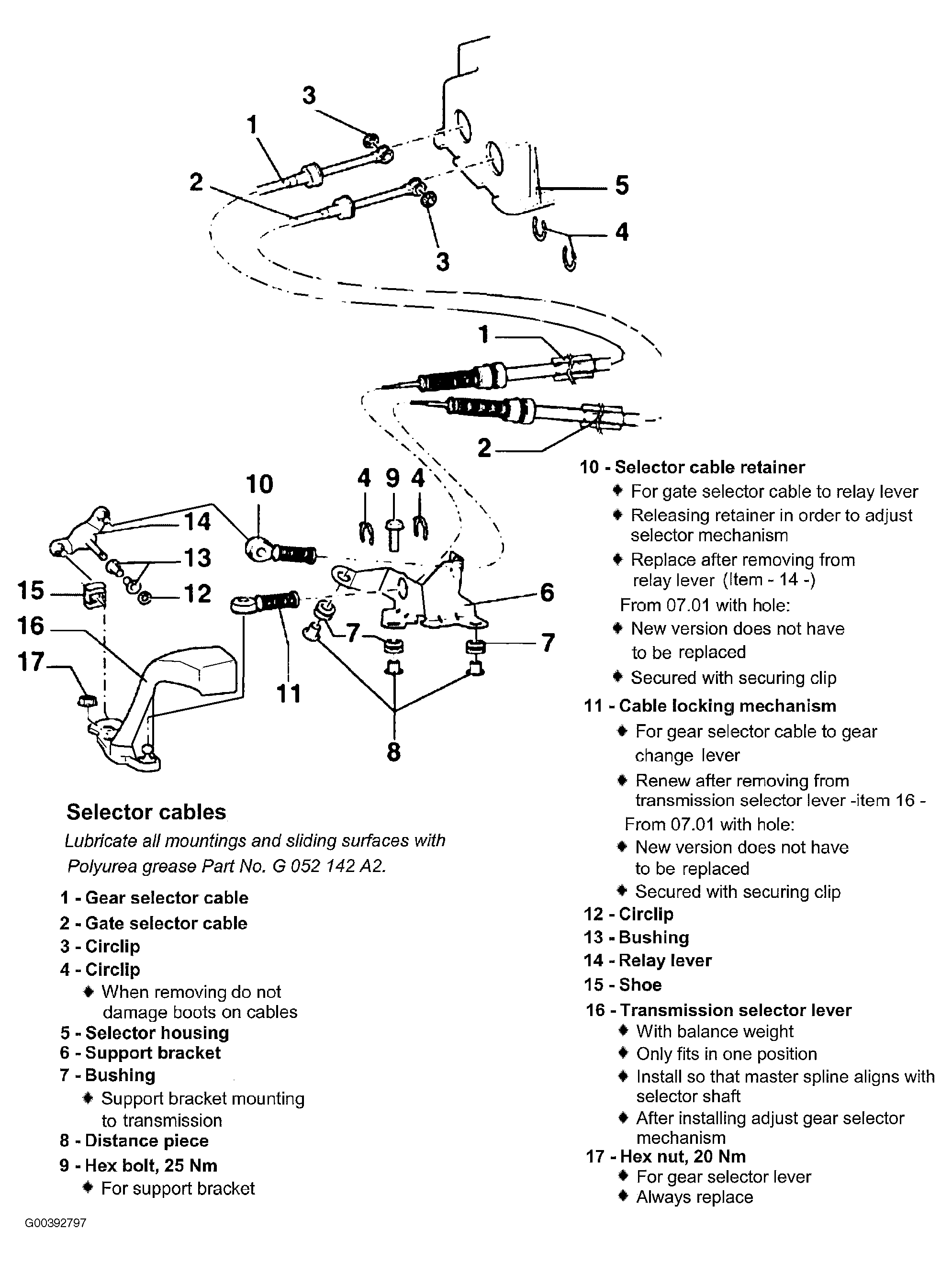

Fig 3: Identifying Selector Cables Components

Courtesy of AUDI OF AMERICA, INC.
