Torque Specifications

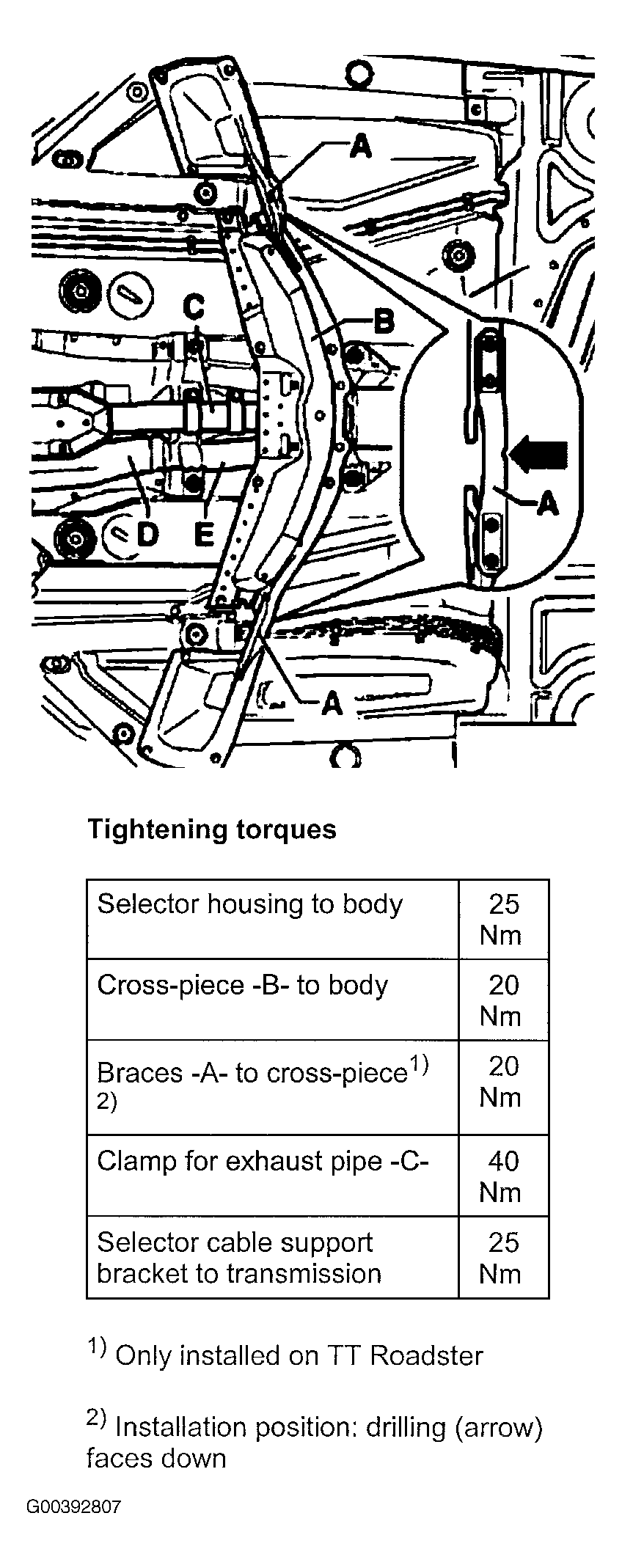

Fig 1: Shift Mechanism & Under Body Component Torque Specifications Table
Courtesy of AUDI OF AMERICA, INC.
Fig 2: Drive Flange To Transmission Torque Specifications
Courtesy of AUDI OF AMERICA, INC.

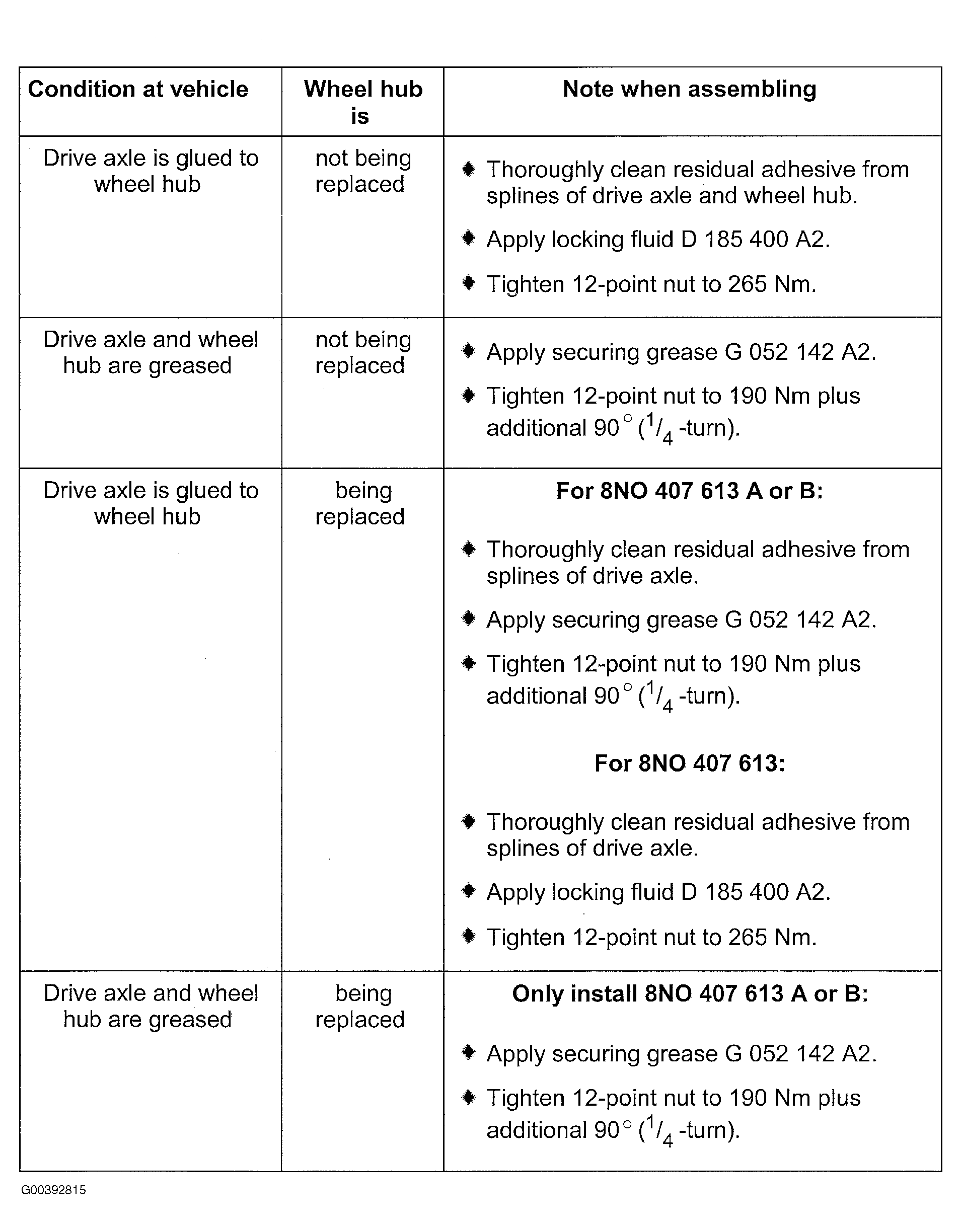

Fig 3: Drive Axle Torque Specifications
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
