Torque Specifications

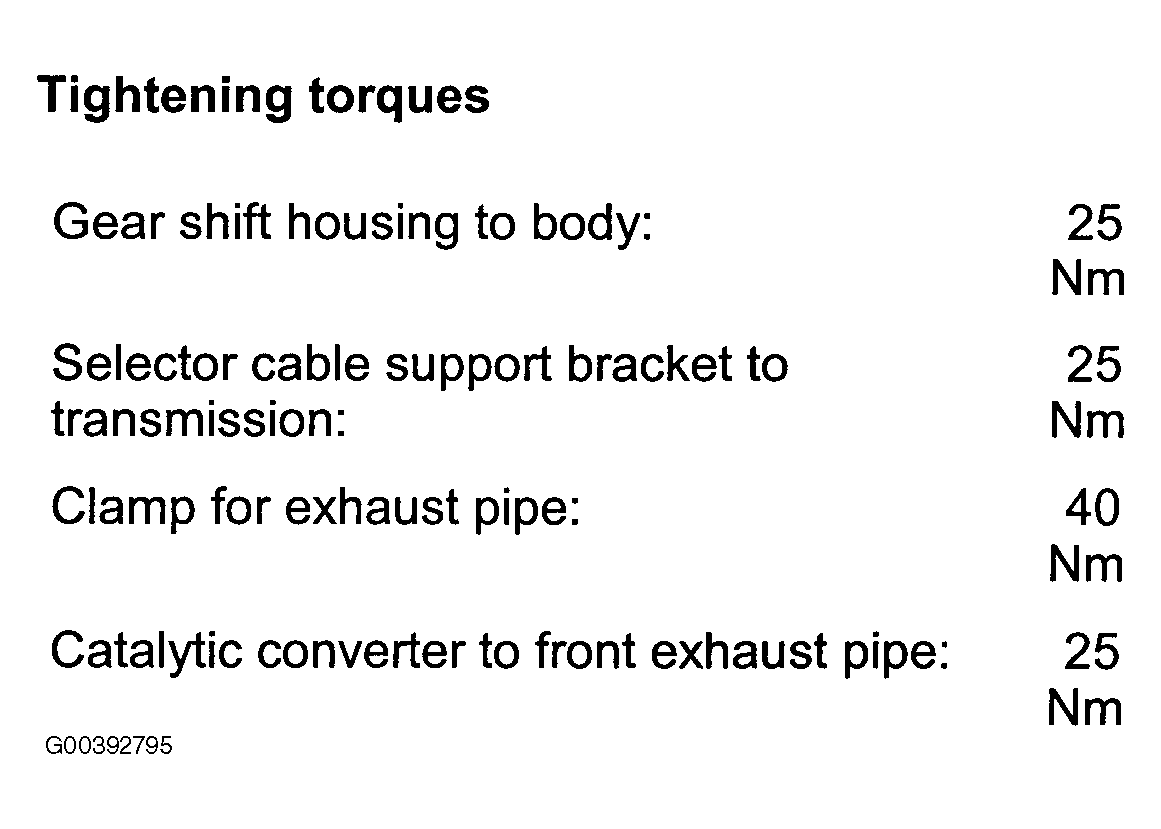

Fig 1: Shift Mechanism Torque Specifications
G00392795Courtesy of AUDI OF AMERICA, INC.

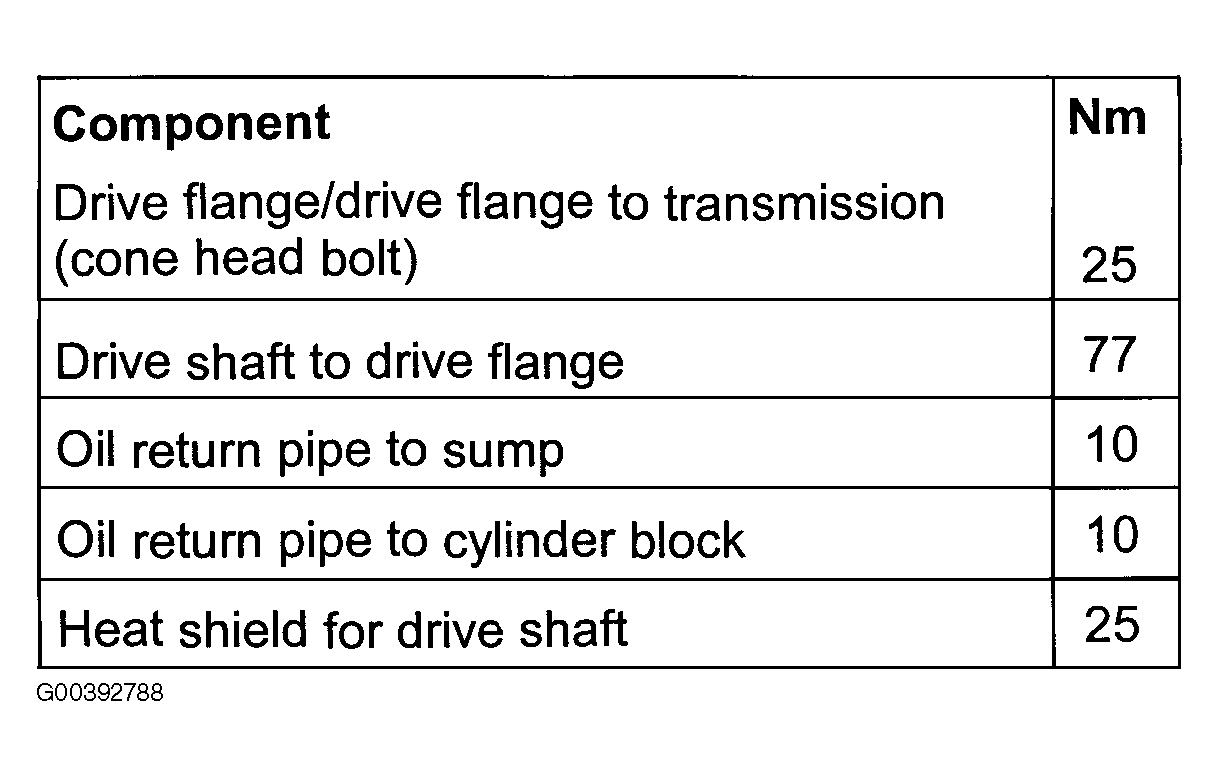

Fig 2: Drive Axle Peripheral Replacement Components Torque Specifications
G00392788Courtesy of AUDI OF AMERICA, INC.
