Test requirement
- Engine not running, ignition switched on.
When indicated on display:

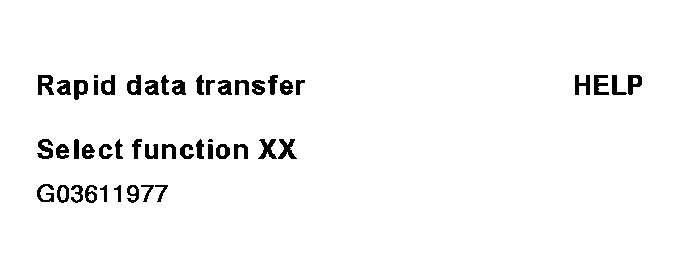

Fig 1: Identifying VAG1551 Scan Tool Display - Adapt Throttle Valve Control Module To Engine Control Module (1 Of 3)
- Press buttons -0- and -4- to select "Initiate basic setting" and press - Q- button to confirm input.
When indicated on display:

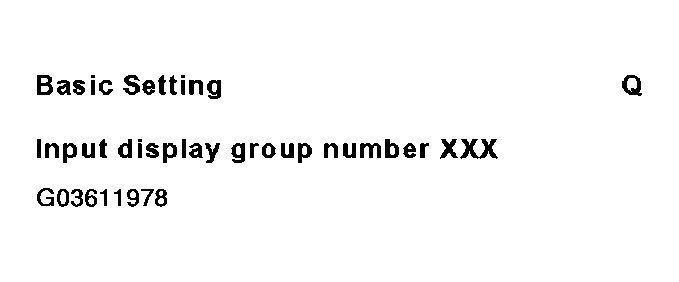

Fig 2: Identifying VAG1551 Scan Tool Display - Adapt Throttle Valve Control Module To Engine Control Module (2 Of 3)
- Press buttons -0-, -6- and -0- to select "display group number 060" and press -Q- button to confirm input.
When indicated on display:

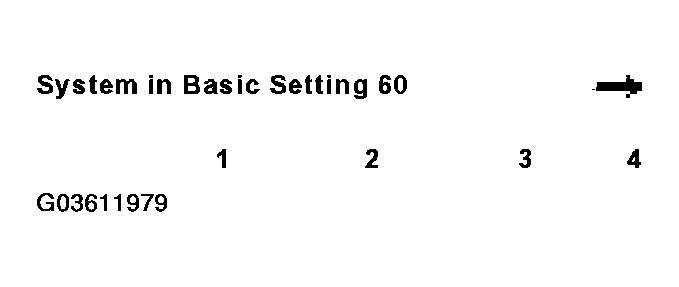

Fig 3: Identifying VAG1551 Scan Tool Display - Adapt Throttle Valve Control Module To Engine Control Module (3 Of 3)
- Check specified value in display field 4.
DISPLAY GROUP 060: ADAPTATION OF THROTTLE VALVE CONTROL MODULE
| Display fields | ||||
|---|---|---|---|---|
| 1 | 2 | 3 | 4 | |
| Display group 060: Adaptation of throttle valve control module | ||||
| Display | xx% | xx% | x | - |
| Indicated | Throttle valve angle (angle sensor 1) |
Throttle valve angle (angle sensor 2) |
Adaptation step counter | Adaptation condition |
| Functional range | 0 to 100% | 0 to 100% | 0 to 8 | ADP in progress ADP OK ADP ERROR |
| Specified value | 3 to 93% | 97 to 3% | 8 | ADP OK |
| Notes | After adaptation, the adaptation step counter reaches the number 8 (it is OK for numbers to be skipped) . | If "ADP ERROR." is displayed: Check DTC memory
. See CHECK DTC MEMORY (FUNCTION 02) AND ERASE DTC MEMORY (FUNCTION 05) . If specified value is not obtained: Note , see THROTTLE VALVE CONTROL MODULE, ADAPTING . |
||
Note for display field 3:
Different numbers are shown in display field 3 during adaptation that represent the current adaptation condition. It is not particularly important how the adaptation step counter (display field 3) behaves during adaptation, but rather that display field 4 indicates the specification "ADP OK" after adaptation .
If specified value "ADP OK" is obtained:
- Press -C- button.
