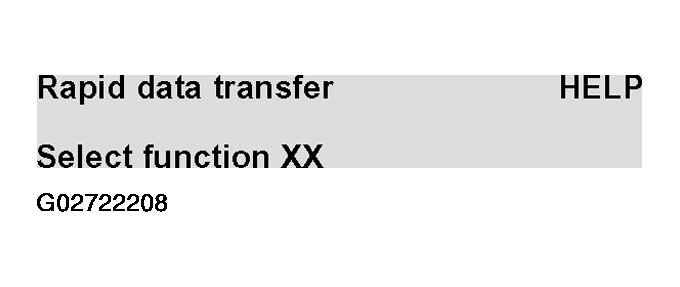

Erase DTC Memory (scan tool function 05): Requirement:

After DTC memory has been checked:

Indicated on display:

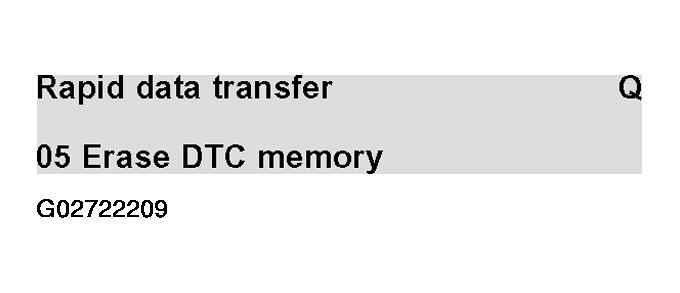

Fig 1: VAG1551 Scan Tool Display - Erasing DTC Memory (1 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display:

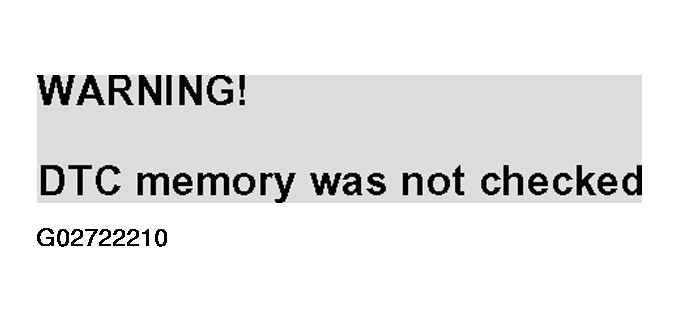

Fig 2: VAG1551 Scan Tool Display - Erasing DTC Memory (2 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Indicated on display:

Fig 3: VAG1551 Scan Tool Display - Erasing DTC Memory (3 Of 6)

Courtesy of AUDI OF AMERICA, INC.

NOTE: If the ignition was switched off, for example, between checking the DTC memory and erasing DTC memory, the DTC memory is then not erased.

Indicated on display:

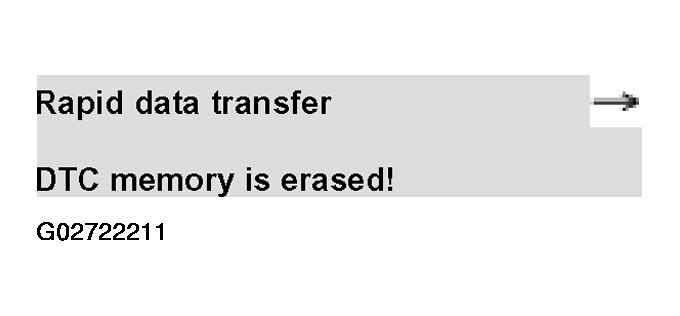

Fig 4: VAG1551 Scan Tool Display - Erasing DTC Memory (4 Of 6)

Courtesy of AUDI OF AMERICA, INC.

The DTC memory will be erased approx. 5 seconds. after the display appears.

The DTC memory is now erased.

NOTE: Wait about 1 minute before again checking the DTC memory.

Indicated on display

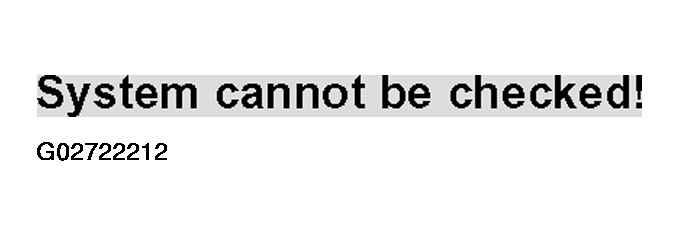

Fig 5: VAG1551 Scan Tool Display - Erasing DTC Memory (5 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Print out with printer switched on:

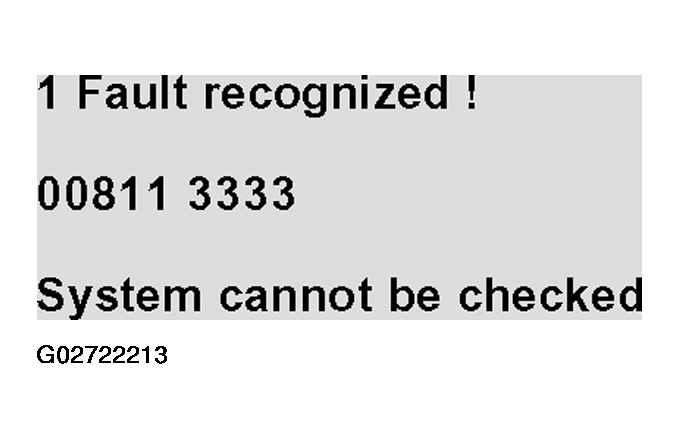

Fig 6: VAG1551 Scan Tool Display - Erasing DTC Memory (6 Of 6)

Courtesy of AUDI OF AMERICA, INC.

Control module -J217- was not given sufficient time to recognize faults.

Wait about 1 minute before again checking the DTC memory.
After checking and erasing the DTC memory, carry out a test drive and again check the DTC memory.

When the DTC memory is checked, the following display should appear:

"No DTC recognized!"
