Test sequence

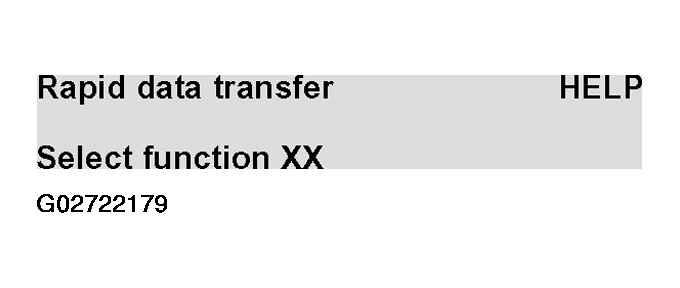

- Connect VAS5051 tester or VAG1551 scan tool and enter address word 02 for "Control module for Transmission electronics". See VAS5051 TESTER OR VAG1551 SCAN TOOL, CONNECTING AND SELECTING FUNCTIONS .
Ignition must be switched off during this process.

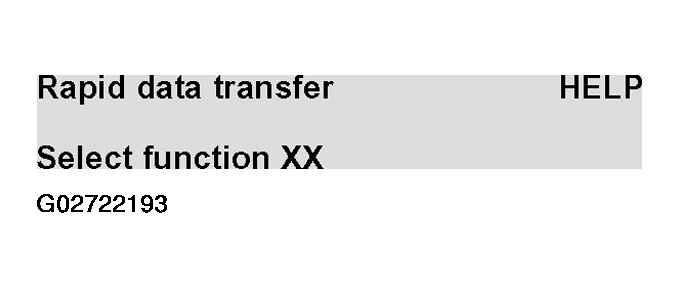

Indicated on display

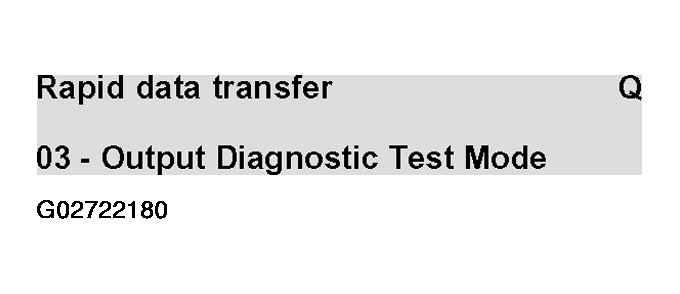

- Press keys 0 and 3. (03 selects the function "Output Diagnostic Test Mode(".
Indicated on display
- Confirm entry with key Q.

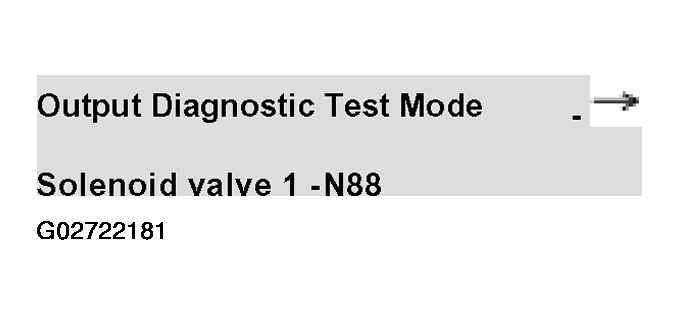

Indicated on display
- Valve is activated (clicks), to switch to the next actuator press --> key.
- If the valve does not click, perform electrical check. See ELECTRICAL TESTING .
- Malfunction is stored in DTC memory. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE .
Indicated on display
- Valve is activated (clicks), to switch to the next actuator press --> key.
- If the valve does not click, perform electrical check. See ELECTRICAL TESTING .
Indicated on display
- Valve is activated (clicks), to switch to the next actuator press --> key.
- If the valve does not click, perform electrical check. See ELECTRICAL TESTING .
Malfunction is stored in DTC memory. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

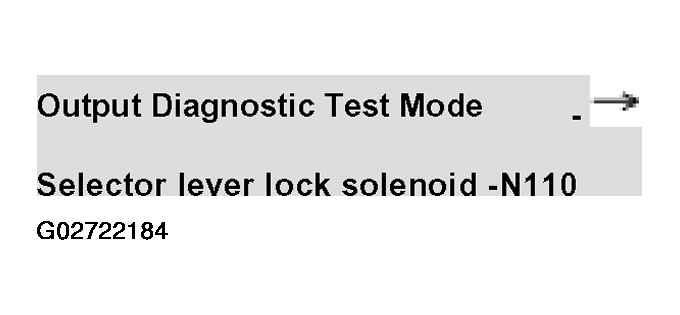

Indicated on display
- Solenoid is activated (clicks), to switch to the next actuator press --> key.
- If solenoid does not click, perform electrical check. See ELECTRICAL TESTING .
- Malfunction is stored in DTC memory. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE .
Indicated on display
- Valve is activated (clicks), to switch to the next actuator press --> key.
Eventually electrical malfunctions will be stored in DTC memory of the On Board Diagnostic (OBD), DTC table. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE .
Indicated on display
- Valve is activated (clicks), to switch to the next actuator press --> key.
Eventually electrical malfunctions will be stored in DTC memory of the On Board Diagnostic (OBD), DTC table. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

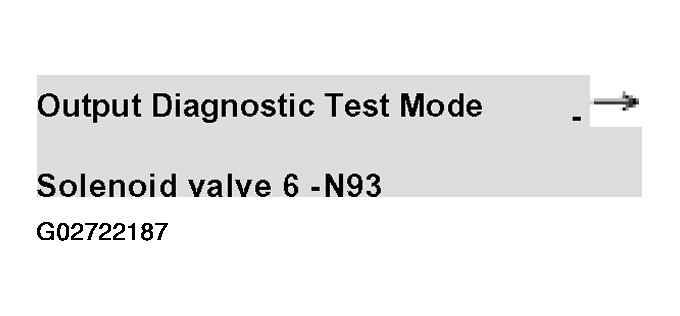

Indicated on display
- Valve is activated (clicks), to switch to the next actuator press --> key.
- Eventually electrical malfunctions will be stored in DTC memory of the On Board Diagnostic (OBD), DTC table. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE .
Indicated on display
- Valve is activated (clicks), to switch to the next actuator press --> key.
Eventually electrical malfunctions will be stored in DTC memory of the On Board Diagnostic (OBD), DTC table. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

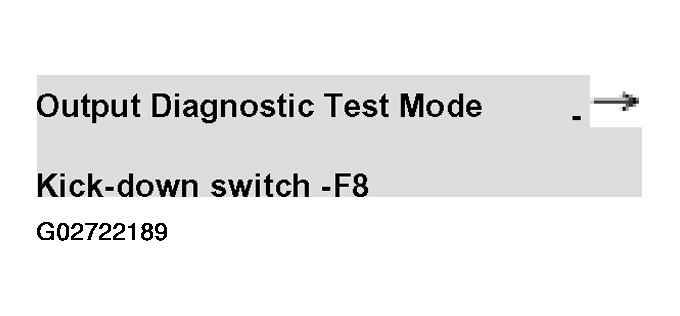

Indicated on display
- It is not the kick-down switch -F8-, but the switch-off function for the air conditioner in transmission control module -J217- which is activated.
- If the kick-down switch is operated, the transmission control module Grounds the output to air conditioner. This briefly switches off the air conditioner compressor.
- Can be disregarded here.
- The signal can be checked in measured value block 011. See READ MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08) .
- For checking function of the kick-down switch -F8-, see ELECTRICAL TESTING .
- Press --> key to switch to the next actuator.

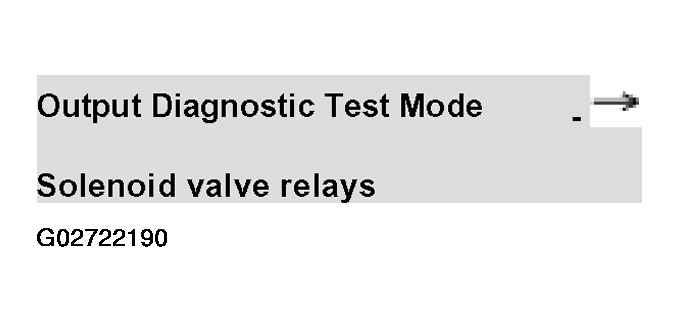

Indicated on display
- Solenoid valves activated in position "P" are activated (click), press --> key to switch to the next actuator.
- Can be disregarded.
- Press --> key.
Indicated on display
- Press --> key
Indicated on display
- Pressing the --> key will terminate the Output Diagnostic Test Mode.

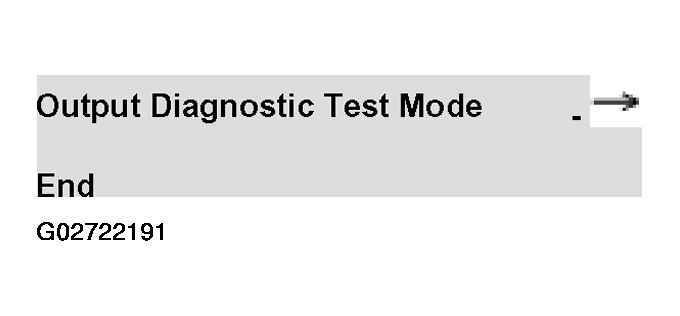

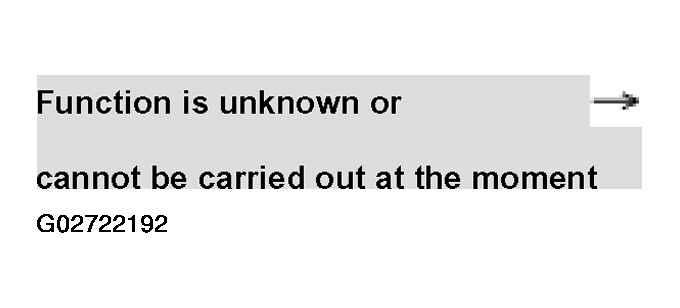

Indicated on display:
- To repeat the Output Diagnostic Test Mode the ignition must be switched off and then on again, then again select the function 03 -Output Diagnostic Test Mode.
