Multi-function steering wheel, general overview

NOTE: The following list refers to Fig 1 .

- Multi-function steering wheel
- With integrated control switches
- With steering wheel integrated electronics
- Instrument cluster
- Radio
- In center console
- Steering Column Electronic Systems Control Module -J527-
- Terminal assignment of Steering Column Electronic Systems Control Module -J527-. See TERMINAL ASSIGNMENT AT STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE -J527- (FRONT) .

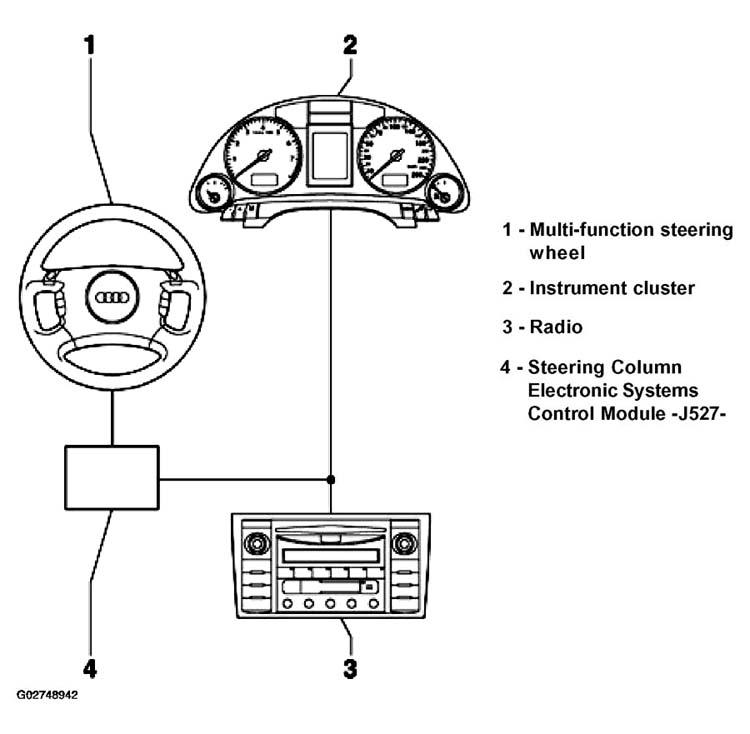

Fig 1: Multi-Function Steering Wheel General Overview

Courtesy of AUDI OF AMERICA, INC.
