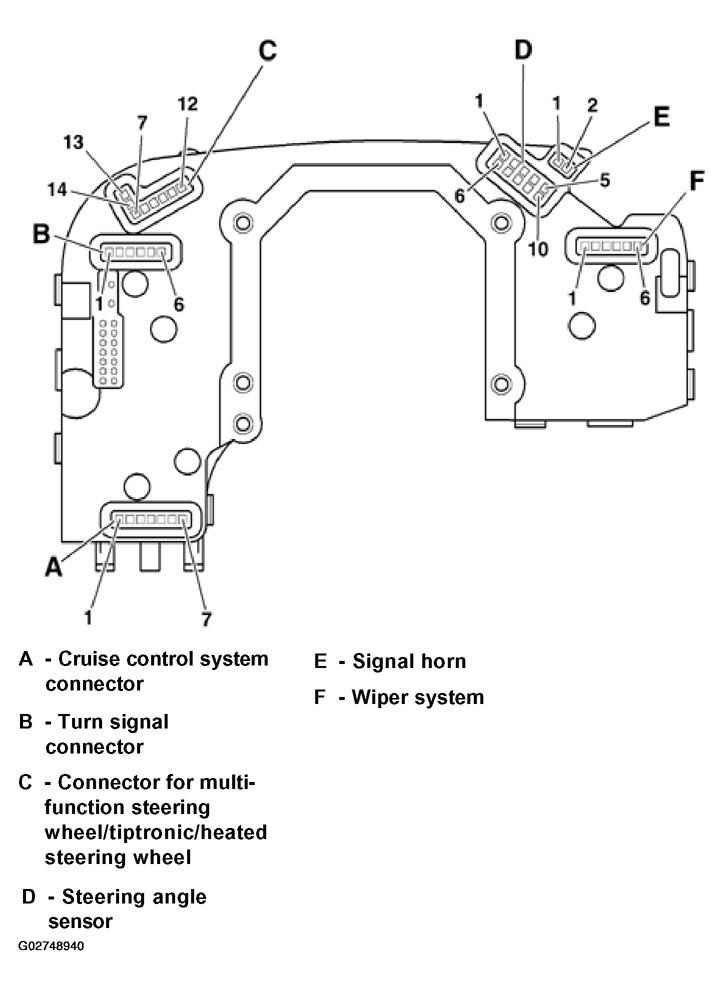

Terminal assignment at Steering Column Electronic Systems Control Module -J527- (front)
NOTE:
The following list refers to Fig 1
.
- - Cruise control system connector
- - Ground (GND)
- - Hold
- - Distance
- - 12 V power supply
- - Mount/Tip function "Off"
- -Acceleration/Deceleration
- - Engaged "Off"
- - Turn signal connector
- - Ground (GND)
- - Radio remote control (special vehicles)
- - Alarm (special vehicles)
- - Not used
- - Headlight flasher/headlight switch
- - Turn signal
- - Connector for multifunction steering wheel/tiptronic/heated steering wheel
- 7 - Push-button "-"
- 8 - Multi-function steering wheel "+" - power supply
- 9 - Multi-function steering wheel data
- 10 - Heat sensor/push button "+"
- 11 - Multi-function steering wheel dimmer
- 12 - Tiptronic ground (GND)
- 13 - Steering wheel heating "+"
- 14 - Steering wheel heating "-"
- - Steering angle sensor
- - Light barrier 5
- - Light barrier 3
- - Light barrier 1
- -12 V voltage supply
- - 5 V voltage supply
- - Light barrier 6
- - Light barrier 4
- - Light barrier 2
- - Steering angle sensor Ground (GND)
- - Light barrier 7
- - Signal horn
- - Horn Ground (GND)
- - Horn
- -Wiper system
- - Ground (GND)
- - Wiper delay potentiometer
- - Trip computer
- - Not Used
- - Washer
- - Wipers
