Multi-pin connector, 16-pin

NOTE: The following list refers to Fig 1 .
  1. - Ground (GND)
  2. - Terminal 30
  3. - Screening for CAN bus
  4. - Not assigned
  5. - Cruise Control System engages in Off position
  6. - Alarm (special vehicles)
  7. - Radio remote control (special vehicles)
  8. - Comfort system databus Low
  9. - Comfort system databus High
  10. - Data bus drive (screened) High
  11. - Data bus drive (screened) Low
  12. - Ignition lock terminal 75
  13. - Ignition lock terminal 15
  14. - Ignition lock S-contact
  15. - Ignition lock terminal 50
  16. - Ignition lock terminal P

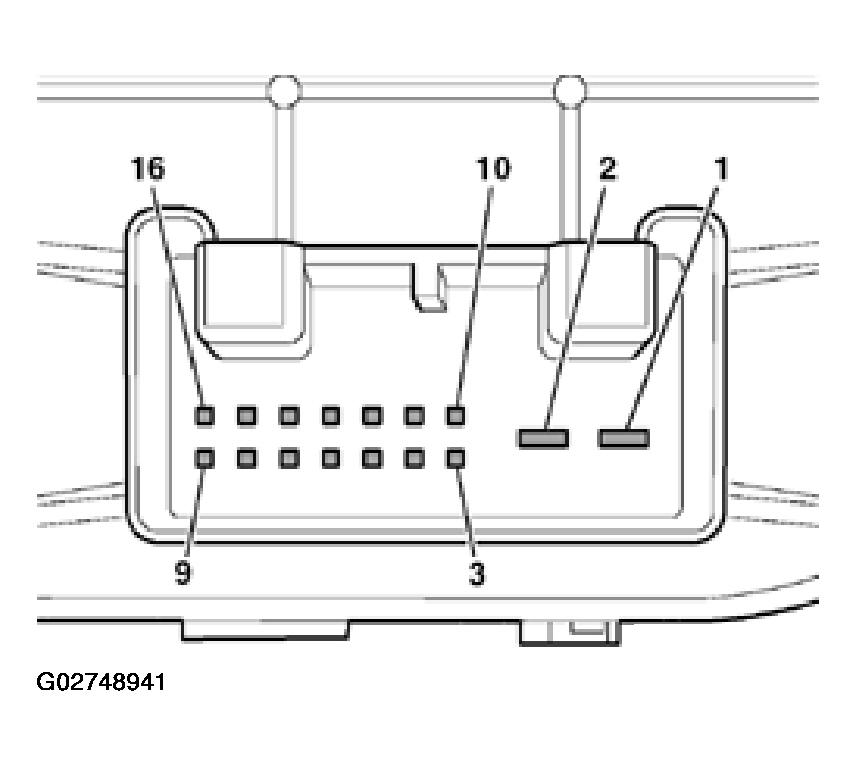

    17. Fig 1: Identifying Terminal Assignment At Steering Column Electronic Systems Control Module -J527- (Rear)
    G02748941Courtesy of AUDI OF AMERICA, INC.
