Cooling System Components (3.2L V6 Engine Code BHE)

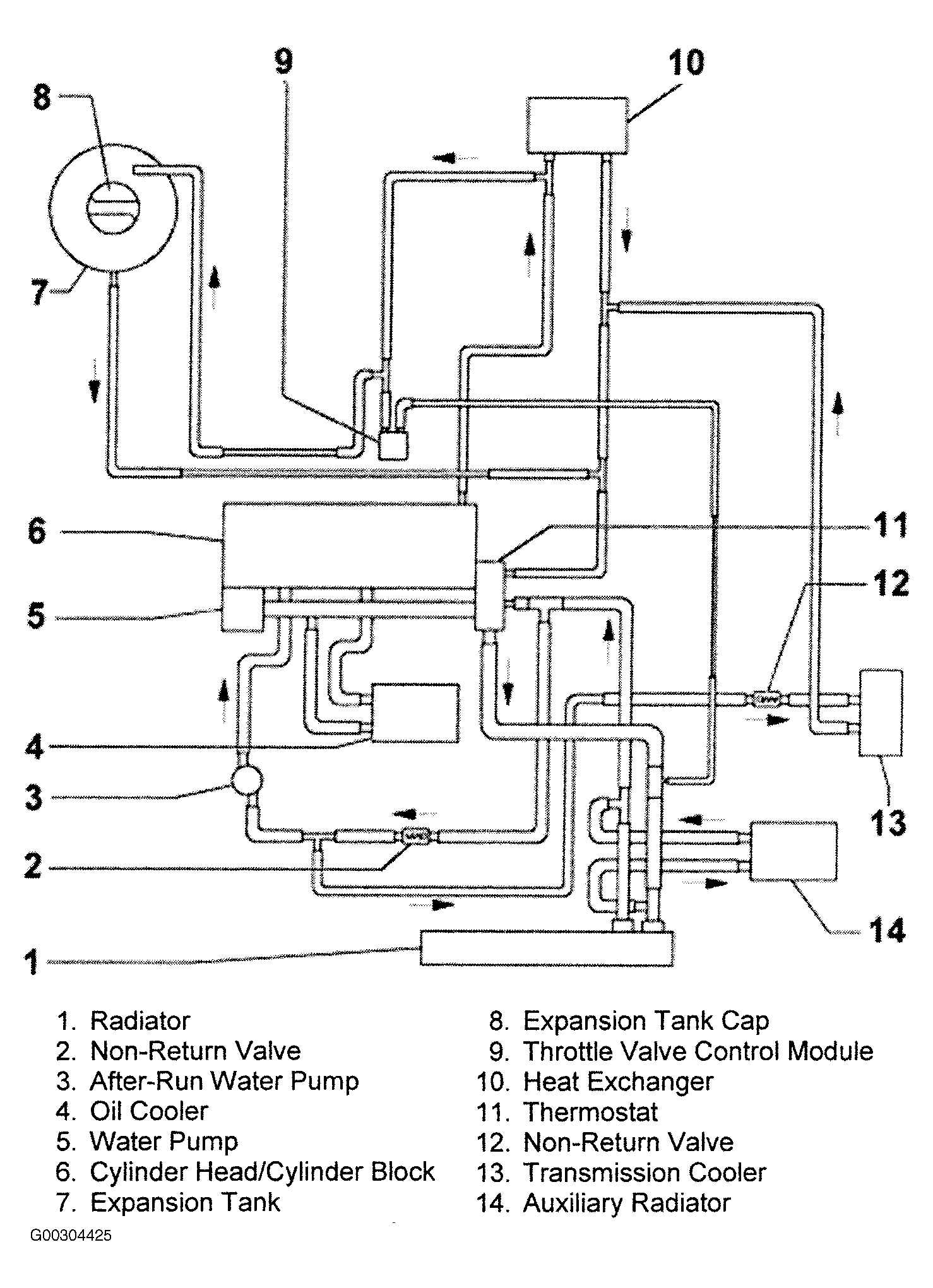

Fig 1: Identifying Cooling System Components & Coolant Flow (3.2L V6 Engine Code BHE)
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
