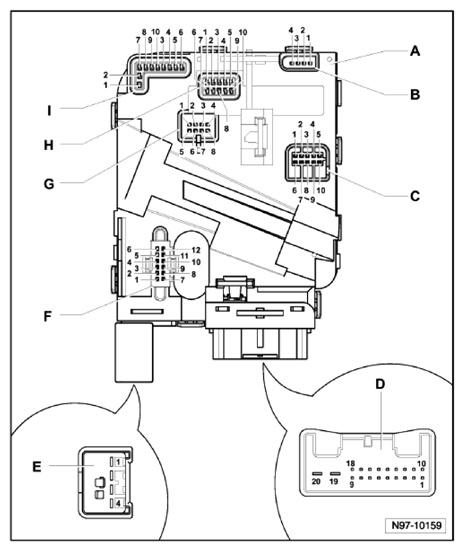

Steering Column Electronic Systems Control Module Connector End View (J527, T20b, T4n)
| A | Steering Column Electronic Systems Control Module -J527- |
| B | 4-Pin Connector (Charging Airbag) |
| C | 10-Pin Connector (Charging Turn Signal and Cruise Control System) |
| D | 20-Pin Connector -T20b- |
| E | 4-Pin Connector -T4n- |
| F | 12-Pin Connector (Charging Ignition/Starter Switch and Ignition Switch Key Lock) |
| G | 8-Pin Connector (Charging Wiper, Interval potentiometer and Multi-Function Indicator (MFI)) |
| H | 10-Pin Connector (Charging Steering Angle Sensor) |
| I | 10-Pin Connector (Charging Spiral Spring) |
