Test sequence

Connect vehicle diagnostic, testing and information system VAS 5051. Go to VAS 5051 VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM, CONNECTING AND SELECTING FUNCTIONS . Select vehicle system "01 - Engine electronics" in selection. Engine must be run at idle.

Display on VAS 5051:

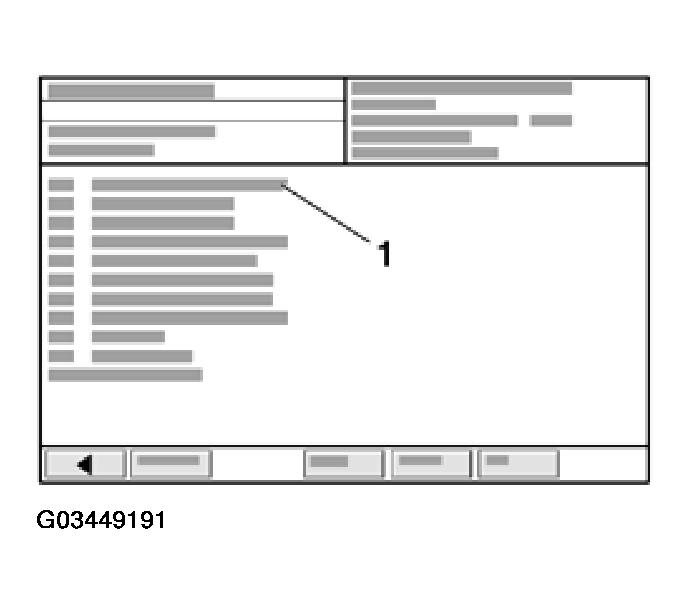

Fig 1: Displaying On VAS 5051 - Measured Value Block (1 Of 3)

G03449191

Courtesy of AUDI OF AMERICA, INC.

Under -1- select diagnostic function "08 - Read measured value block".

Display on VAS 5051:

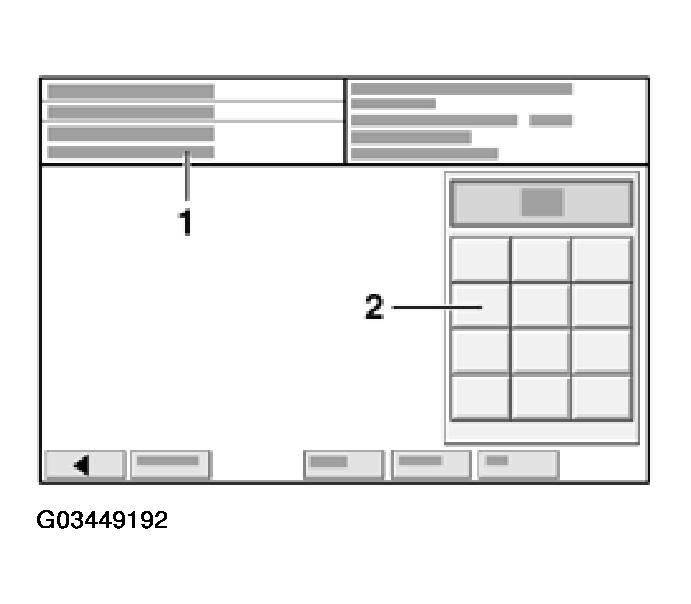

Fig 2: Displaying On VAS 5051 - Measured Value Block (2 Of 3)

G03449192

Courtesy of AUDI OF AMERICA, INC.

1 - Enter display group

Enter desired display group number (three figures) in zone -2- and confirm entry by pressing -Q- button.

NOTE: The choice of display group depends on the particular functions and components to be tested.

Display on VAS 5051:

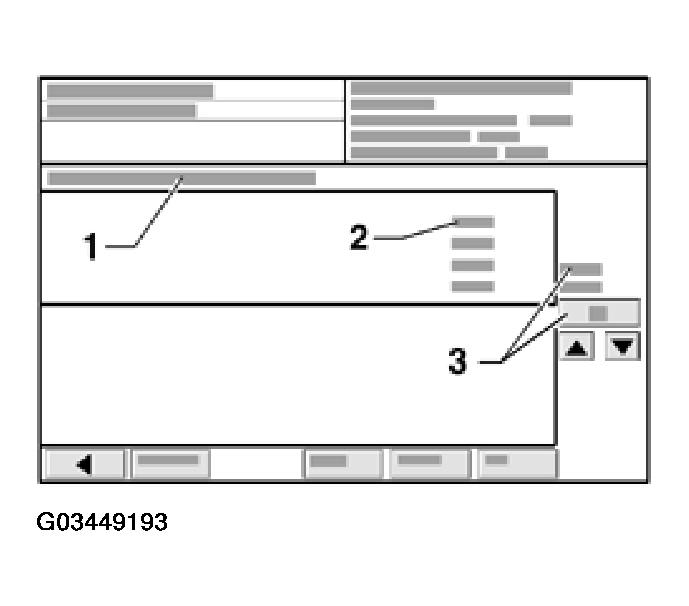

Fig 3: Displaying On VAS 5051 - Measured Value Block (3 Of 3)

G03449193

Courtesy of AUDI OF AMERICA, INC.

- Display group X
- Display zone 1
Display zone 2

Display zone 3

Display zone 4
- Display group X

NOTE:

If no display follows, a display field is not assigned.
To switch to a different display group, proceed as follows:

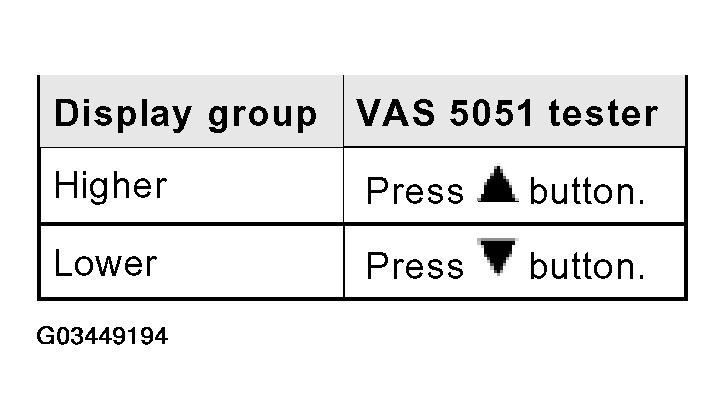

Fig 4: Switching To Different Display Groups

G03449194

Courtesy of AUDI OF AMERICA, INC.

Press < button to end function "08 - Read measuring value block".
