Test sequence: Notes
- Open cover of fuse box at left side of instrument cluster.
- Remove fuse S228 at fuse carrier (position 28) (left row, 5th large fuse from top).
- Connect e.g. VAG1348/3A remote control connection using adapter cables from VAG1348/3-2 at right terminal of socket from fuse S228 (position 28).
- Connect alligator clip to vehicle battery B+.
- Remove fuel filler cap from fuel filler tube.

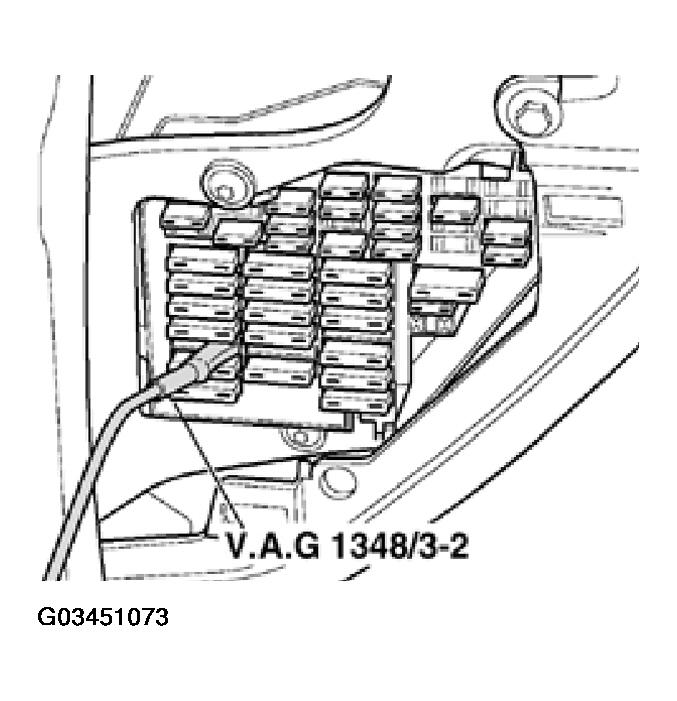

Fig 1: Connecting VAG1348/3A At Right Terminal Of Socket From Fuse S228 (Position 28) (FWD - Vehicles As Of 07.2003)
