Encoding II Engine Control Module (ECM): Notes

• Connect vehicle diagnostic, testing and information system VAS 5051. Go to VAS 5051 VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM, CONNECTING AND SELECTING FUNCTIONS . Select vehicle system "01 - Engine electronics" in selection. Ignition must be switched on.

Display on VAS 5051:

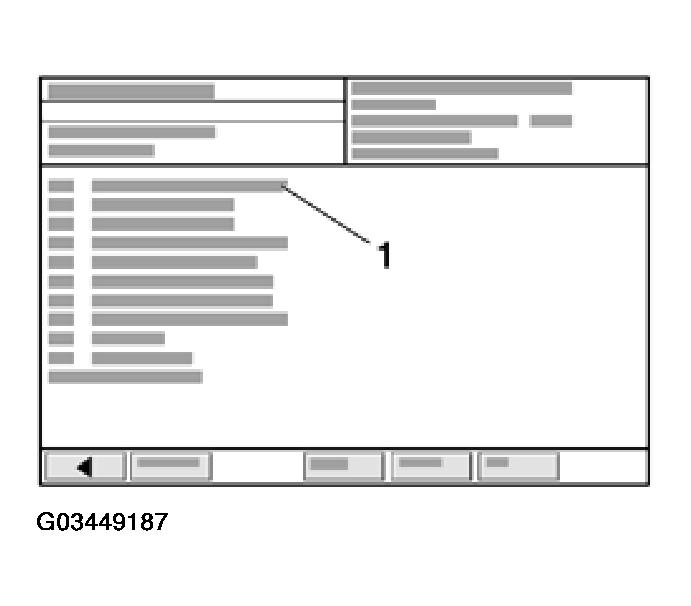

Fig 1: Displaying On VAS 5051 - EnCoding II Engine Control Module (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

• Under -1- select diagnostic function "07 - Encode Engine Control Module".

Display on VAS 5051:

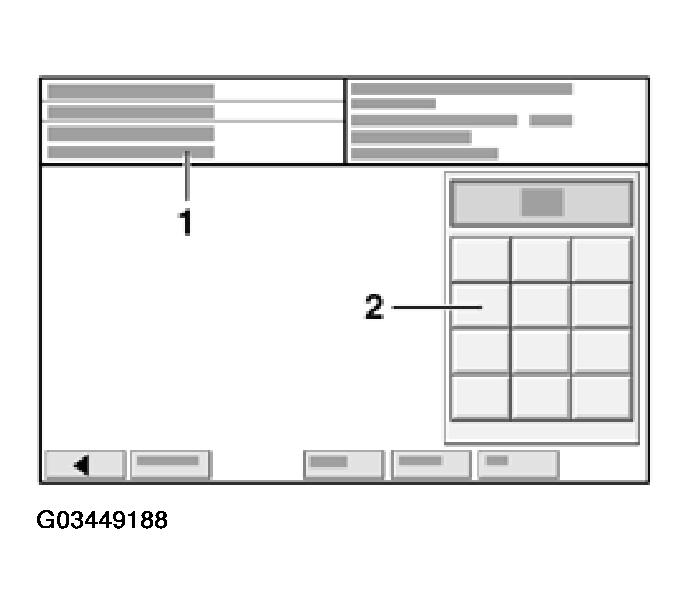

Fig 2: Displaying On VAS 5051 - EnCoding II Engine Control Module (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

1 - Enter code max. input value = 32767

• Enter 7-digit control module Coding II in button field -2- according to Coding II table. Go to CODING II .
• Enter Engine Control Module code in zone -2- in line with encoding II table. Go to CODING II .
