Navigation Interface R94 , Sedan, removing and installing

• Turn off all electrical components.
• Remove ignition key.

Removing

• Remove left luggage compartment side trim → - 70 - INTERIOR TRIM .

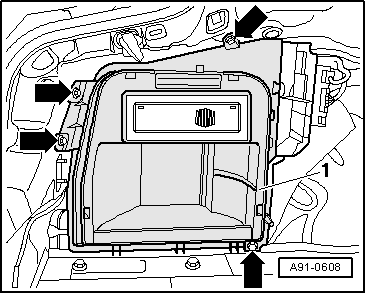

Fig 1: Removing Screws And Base Mount

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove bolts - arrows  - (14 Nm) and remove base mount - 1  -.

Fig 2: Disconnecting Electrical Connections And Antenna Wiring At Rear Of Navigation Interface

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Disconnect connectors at Navigation Interface R94 - 1  -.
• Release Navigation Interface R94 - 1  - at catch - arrow  - and remove from mounting plate - 2  -.

Installing

• Install in reverse order.
