Navigation System with CD Drive Control Module J401 , harness connectors

WARNING: This page is about a different variant/trim than selected.

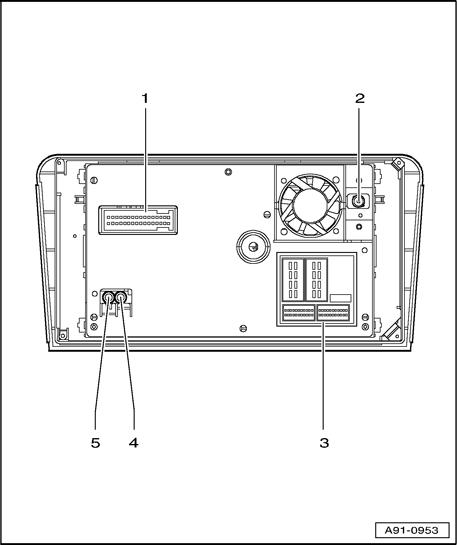

Fig 1: Navigation System With CD Drive Control Module J401 , Harness Connectors

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Black 32-pin multi-pin connector (T32f) to Navigation/TV Tuner J415

2 - Navigation System Antenna R50 GPS connection (blue)

3 - Connection block with four multi-pin connectors and a fuse for unit

4 - IF connection (white) to Antenna Selection Control Module J515 / Left Antenna Module R108

5 - HF connection (white) to Antenna Selection Control Module J515 / Left Antenna Module R108

NOTE:

Unlisted connector terminals are not assigned.

Fig 2: Black 32-Pin Multi-Pin Harness Connector (T32F)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Black 32-pin multi-pin harness connector (T32f)

13 - Right audio input from Navigation/TV Tuner J415

15 - Video input sync. from Navigation/TV Tuner J415

16 - Video input green from Navigation/TV Tuner J415

27 - Screen ground from Navigation/TV Tuner J415

28 - Audio ground from Navigation/TV Tuner J415

29 - Left audio input from Navigation/TV Tuner J415

30 - Video ground from Navigation/TV Tuner J415

31 - Video input blue from Navigation/TV Tuner J415

32 - Video input red from Navigation/TV Tuner J415

Fig 3: Multi-Pin Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

A - Brown 8-pin multi-pin connector (T8q)

2 - Right front speaker (+) (not with BOSE)

3 - Left front speaker (+) (not with BOSE)

6 - Right front speaker (-) (not with BOSE)

7 - Left front speaker (-) (not with BOSE)

Fig 4: Multi-Pin Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

B - Blue 12-pin multi-pin connector (T12n)

2 - CD ground to CD Changer R41

3 - Speed signal

4 - Permanent positive to CD Changer R41

5 - L-diagnostic

6 - CD data out to CD Changer R41

7 - BOSE coding to ground (only with BOSE)

8 - Left signal from CD Changer R41

9 - Right signal from CD Changer R41

10 - Positive switched to CD Changer R41

11 - CD data in from CD Changer R41

12 - CD CLK from CD Changer R41

Fig 5: Multi-Pin Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

C - Green 12-pin multi-pin connector (T12m)

1 - Microphone input (-) from Telephone Microphone R38 (from MY06)

2 - Signal from Back-Up Light Switch F4 (not used)

3 - Left front signal to Amplifier R12 (only with BOSE)

4 - Microphone output (-) to Telephone Transceiver R36 (from MY06)

5 - Left rear signal to Amplifier R12

6 - NF (-) from Telephone Transceiver R36 /preliminary setup for cell phone package

7 - Microphone input (+) from Telephone Microphone R38 (from MY06)

8 - Signal ground to Radio R12

9 - Right front signal to Amplifier R12 (only with BOSE)

10 - Microphone output (+) to Telephone Transceiver R36 (from MY06)

11 - Right rear signal to Amplifier R12

12 - NF (+) from Telephone Transceiver R36 /preliminary setup for cell phone package

Fig 6: Multi-Pin Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

D - Black 8-pin multi-pin connector D (T16j)

9 - CAN-Bus High (Infotainment)

10 - CAN-Bus Low (Infotainment)

11 - NF mute from Telephone Transceiver R36 (through MY04)

12 - Terminal 31

13 - Positive switched to Amplifier R12

14 - Anti-theft warning system ground from Comfort System Central Control Module J393

15 - Terminal 30

16 - Permanent positive (not used)
