Operating Electronics, Navigation Control Module J402

WARNING: This page is about a different variant/trim than selected.

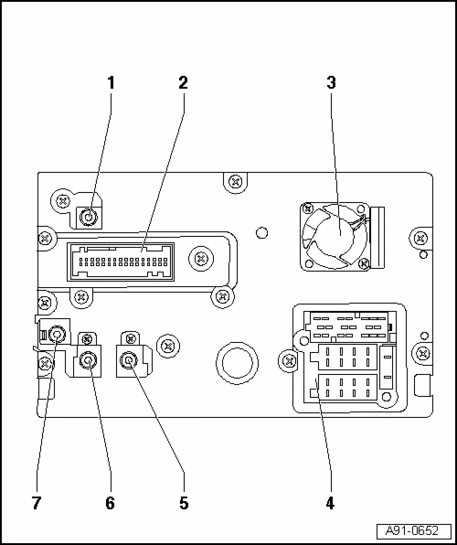

Fig 1: Operating Electronics, Navigation Control Module J402

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - GPS connection (blue) from Navigation System Antenna R50

2 - Black 32-pin multi-pin harness connector (T32f)

3 - Fan

4 - Connector block with three multi-pin connectors and device fuse

5 - Antenna Selection Control Module J515 TV connection (green)

6 - FM2 connector (white) from Antenna Amplifier R24 / Left Antenna Module R108

7 - FM1 connector (white) from Antenna Amplifier R24 / Left Antenna Module R108

NOTE:

Connector assignments not listed are free or not used.

Fig 2: Black 32-Pin Multi-Pin Harness Connector (T32F)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

2 - Black 32-pin multi-pin harness connector (T32f)

1 - Terminal 15

8 - Selection 1 to Antenna Selection Control Module J515

9 - Selection 2 to Antenna Selection Control Module J515

22 - Signal from Back-Up Light Switch F4

24 - Screen ground to Antenna Selection Control Module J515

25 - Antenna Selection Control Module J515 diagnostic

Fig 3: Multi-Pin Harness Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

C - Black 20-pin multi-pin harness connector (T20d)

1 - Left rear signal to Amplifier R12

2 - Right rear signal to Amplifier R12

3 - Signal ground to Radio R12

4 - Left front signal to Amplifier R12

5 - Right front signal to Amplifier R12

6 - Positive switched to Amplifier R12

8 - CAN-Bus High (Infotainment)

9 - CAN-Bus Low (Infotainment)

10 - CD ground to CD Changer R41

11 - CD mute to CD Changer R41

12 - Permanent positive to CD Changer R41

13 - CD-TX (+) from CD Changer R41

14 - CD-TX (-) from CD Changer R41

16 - Left signal (-) from CD Changer R41

17 - Positive switched to CD Changer R41

18 - Right signal (-) from CD Changer R41

19 - Left signal (+) from CD Changer R41

20 - Right signal (+) from CD Changer R41

Fig 4: Multi-Pin Harness Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

B - Brown 8-pin multi-pin connector (T8a)

3 - Loudspeaker, right front (+)

4 - Loudspeaker, right front (-)

5 - Loudspeaker, left front (+)

6 - Loudspeaker, left front (-)

Fig 5: Multi-Pin Harness Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

A - 8-pin multi-pin connector (T8h) black

1 - Speed signal

3 - K-wire

4 - Terminal 86s

7 - Terminal 30

8 - Terminal 31
