Anti-Lock Brake/Electronic Stabilization Program ITT Mark 60/ ITT Mark 70 Component Overview

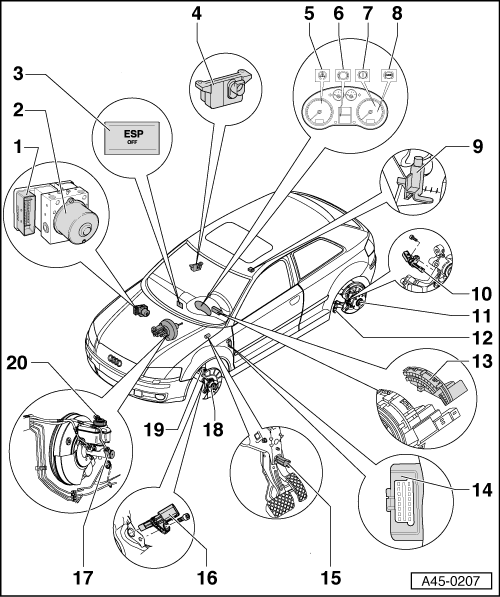

Fig 1: ABS/ESP ITT Mark 60/ ITT Mark 70 Component Overview
GWWA45-0207Courtesy of AUDI OF AMERICA, LLC
  1. ABS Control Module -J104-
    NOTE:

    Beginning with MY 09, the ESP sensor unit G419 is inside the ABS control module.

    Beginning with MY 09, the ABS control module must be replaced if the ESP sensor unit is faulty.

    Beginning with MY 09, the ABS control module must be calibrated if it was replaced.

    Beginning with MY 09, the steering angle and the braking pressure are stored in the ABS control module and must be calibrated.

  2. ABS Hydraulic Unit -N55-
  3. ASR/ESP Button -E256-
    • Component location: In the center console
  4. ESP Sensor Unit -G419-
    • 20 Nm
      NOTE:

      Through MY 08, the ESP sensor unit is located under the right seat.

      Beginning with MY 09, the sensor unit ESP sensor unit is inside the ABS control module.

      Beginning with MY 09, the ABS control module must be replaced if the ESP sensor unit is faulty.

      Beginning with MY 09, the ABS control module must be calibrated if it was replaced.

      Beginning with MY 09, the steering angle and the braking pressure are stored in the ABS control module and must be calibrated.

    • Combined in one housing
    • Combined sensor for transverse acceleration sensor -G200- and for rotation rate sensor -G202-
    • On all-wheel drive vehicles, also longitudinal acceleration sensor -G251-
    • ESP sensor unit, removing and installing, refer to ELECTRONIC STABILIZATION PROGRAM SENSOR UNIT
  5. ASR/ESP Control Lamp -K155-
    • Component location: In instrument cluster
  6. Brake Pad Wear Indicator Lamp -K32-
    • Brake pad worn
    • Component location: In instrument cluster
  7. Brake System Indicator Lamp -K118-
    • Component location: In instrument cluster
    • Brake malfunction, hand brake engaged
    • Check brake fluid if blinking
  8. ABS Indicator Lamp -K47-
    • Component location: In instrument cluster
  9. Parking Brake Indicator Lamp Switch -F9-
    • Component location: On hand brake lever
  10. Right/Left Rear ABS Wheel Speed Sensor -G44- / -G46-
  11. Wheel Bearing/Hub Unit
    • The ABS sensor ring/rotor is installed in the wheel bearing
  12. Wheel Bearing Housing
  13. Steering Angle Sensor -G85-
    • Component location: Coil ring with slip ring on steering column switch
    • Removing and installing, refer to STEERING ANGLE SENSOR
  14. Data Link Connector (DLC)
    • Component location: cover in driver footwell
  15. Brake Lamp Switch -F-
  16. Right/Left Front ABS Wheel Speed Sensor -G45- / -G47-
  17. Brake Master Cylinder
  18. Wheel Bearing/Hub Unit
    • The ABS sensor ring/rotor is installed in the wheel bearing
  19. Wheel Bearing Housing
  20. Brake Fluid Level Warning Switch -F34-
