Anti-Lock Brake/Electronic Stabilization Program System At Rear Axle With Front-Wheel Drive Assembly Overview

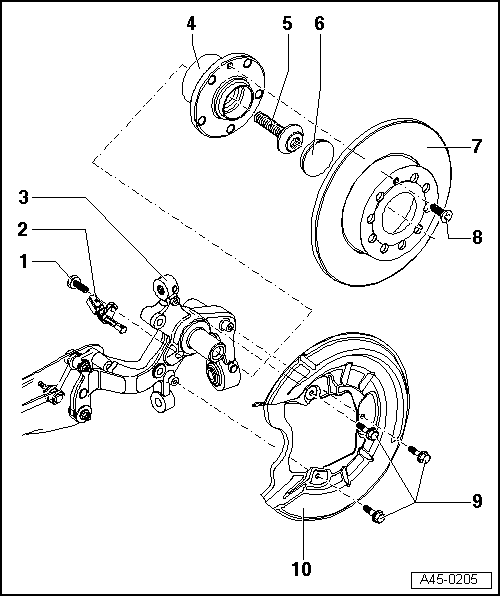

Fig 1: Anti-Lock Brake/Electronic Stabilization Program System At Rear Axle With Front-Wheel Drive Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Hex Socket Head Bolt
   • 8 Nm
2. Wheel Speed Sensor
   • Removing and installing, refer to SPEED SENSOR AT REAR AXLE WITH FRONT-WHEEL DRIVE
   • Before inserting sensor, clean inner surface of hole and coat with grease G 000 650
3. Stub Axle Carrier
4. Wheel Bearing Unit, refer to Removal and Installation
5. Twelve-Point Nut
   • Tightening specification, refer to Description and Operation
6. Grease Cap
   • Removing and installing, refer to Removal and Installation
7. Brake Disc
   • Allocation, refer to BRAKES
8. Bolt
   • Tightening specification, refer to -3- BRAKES, FS III ASSEMBLY OVERVIEW => Bolt and -3- BRAKES, FN 3 ASSEMBLY OVERVIEW => Bolt
9. Bolt
   • 60 Nm
10. Cover Plate
