Anti-Lock Brake/Electronic Stabilization Program System At Rear Axle, Vehicles With All-Wheel Drive Assembly Overview

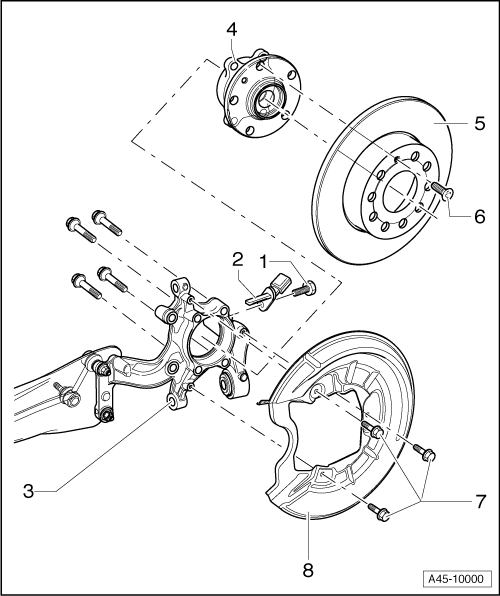

Fig 1: Anti-Lock Brake/Electronic Stabilization Program System At Rear Axle, Vehicles With All-Wheel Drive Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Hex Socket Head Bolt
   • 8 Nm
2. Wheel Speed Sensor
   • Removing and installing, refer to SPEED SENSOR AT REAR AXLE WITH ALL-WHEEL DRIVE
   • Before inserting sensor, clean inner surface of mounting hole and coat with polycarbamide grease G 000 650
3. Stub Axle Carrier
4. Wheel Bearing Unit, refer to Removal and Installation
5. Brake Disc
   • Allocation, refer to BRAKES
6. Bolt
   • Tightening specification -3- BRAKES, FS III ASSEMBLY OVERVIEW => Bolt and -3- BRAKES, FN 3 ASSEMBLY OVERVIEW => Bolt
7. Bolt
   • 60 Nm
8. Cover Plate
