Start/Stop System Assembly Overview

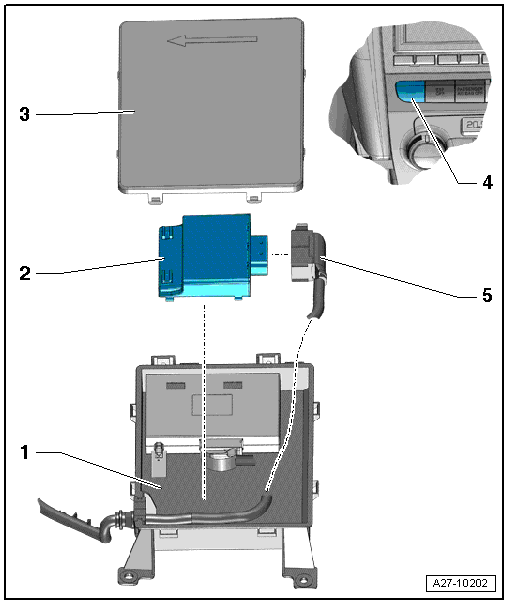

Fig 1: Start/Stop System Assembly Overview
GWWA27-10202Courtesy of AUDI OF AMERICA, LLC
  1. Electronics Box
    • For the voltage stabilizer
  2. Voltage Stabilizer -J532-
  3. Cover
    • For the electronics box
  4. Start/Stop Mode Button -E693-
  5. Electrical Connector
