ABS Control Module (MK60) Connector End View (J104)

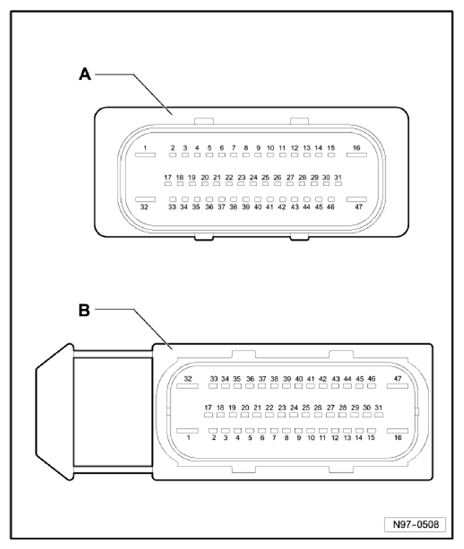

Fig 1: ABS Control Module (MK60) Connector End View (J104)
G10359722Courtesy of AUDI OF AMERICA, LLC
A ABS Control Module (MK60) -J104- Connector
B 47-Pin Connector
