Climatronic Control Module Connector End View (J255, T12f, T20j, T16e, T16d)

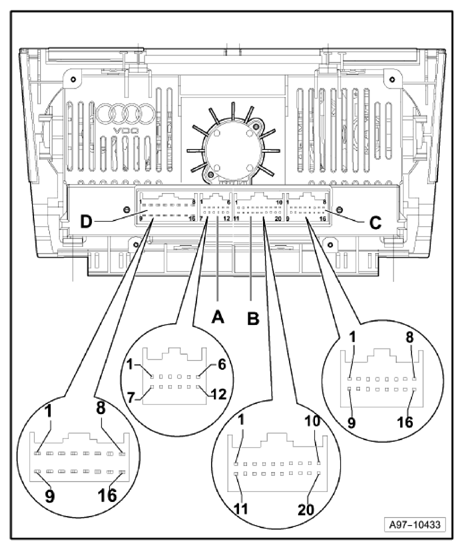

Fig 1: Climatronic Control Module Connector End View (J255, T12f, T20j, T16e, T16d)
G10359737Courtesy of AUDI OF AMERICA, LLC
A 12-Pin Connector -T12f-
B 20-Pin Connector -T20j-
C 16-Pin Connector -T16e-
D 16-Pin Connector -T16d-
