Driver's Door Control Module Connector End View (J386, T32a, T16b, T20f)

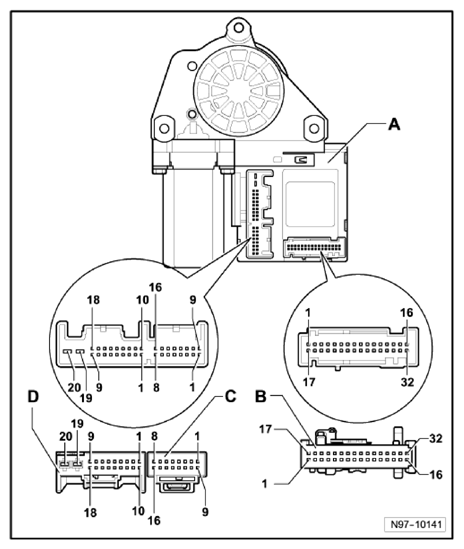

Fig 1: Driver's Door Control Module Connector End View (J386, T32a, T16b, T20f)
G10359734Courtesy of AUDI OF AMERICA, LLC
A Driver's Door Control Module -J386- Connector
B 32-Pin Connector -T32a-
C 16-Pin Connector -T16b-
D 20-Pin Connector -T20f-
