Engine Control Module (ECM) Connector End View (J623, T81, T40)

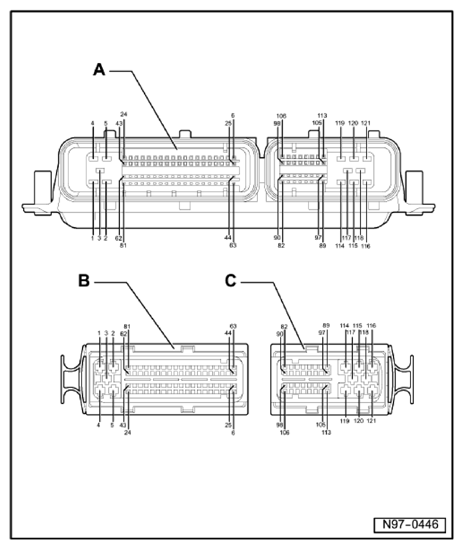

Fig 1: Engine Control Module (ECM) Connector End View (J623, T81, T40)
G10359720Courtesy of AUDI OF AMERICA, LLC
A Engine Control Module (ECM) -J623- Connector
B 81-Pin Connector-T81-
C 40-Pin Connector -T40-
NOTE: T121-consists of items B and C
