Power Steering Control Module Connector End View (J500, T5, T5a, T2a)

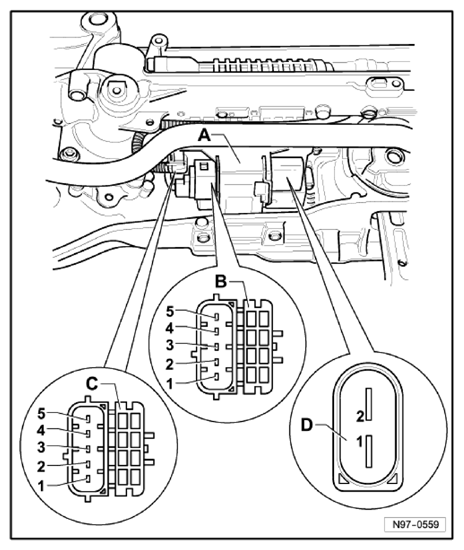

Fig 1: Power Steering Control Module Connector End View (J500, T5, T5a, T2a)
G10359718Courtesy of AUDI OF AMERICA, LLC
A Power Steering Control Module -J500- Connector
B 5-Pin Connector -T5-
C 5-Pin Connector -T5a-
D Double Connector -T2a-
