Right Rear Door Control Module Connector End View (J389, T32f, T20o)

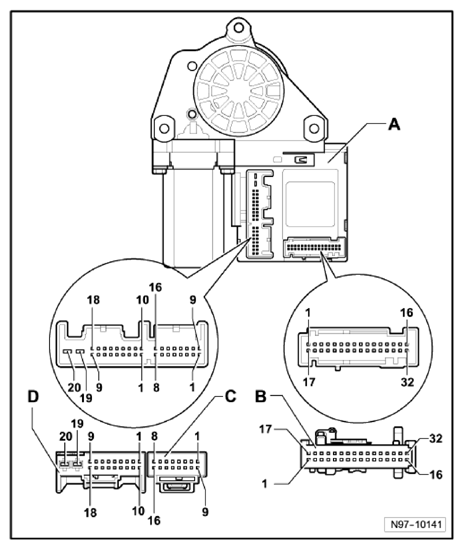

Fig 1: Right Rear Door Control Module Connector End View (J389, T32f, T20o)
Courtesy of AUDI OF AMERICA, LLC
A
Right Rear Door Control Module -J389- Connector
B
32-Pin Connector -T32f-
C
16-Pin Connector (not used)
D
20-Pin Connector -T20o-
