Auxiliary Air Heater Control Module Connector End View (J604, T41)

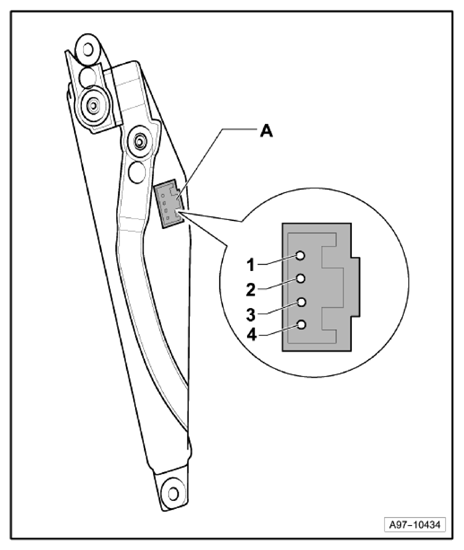

Fig 1: Auxiliary Air Heater Control Module Connector End View (J604, T41)
G10359743Courtesy of AUDI OF AMERICA, LLC
A 4-Pin Connector -T4I-
