Towing Recognition Control Module Connector End View (J345, T16h, T12h)

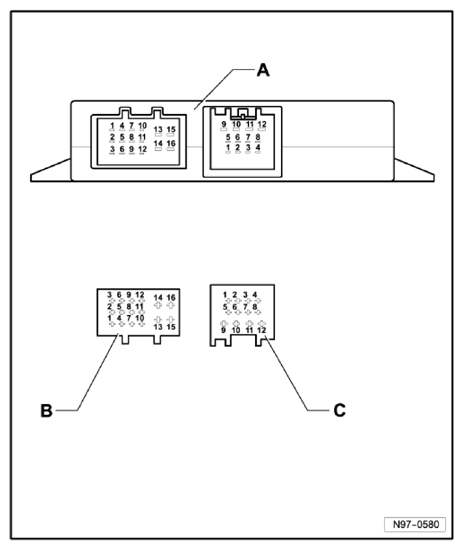

Fig 1: Towing Recognition Control Module Connector End View (J345, T16h, T12h)
Courtesy of AUDI OF AMERICA, LLC
A
Towing Recognition Control Module -J345- Connector
B
16-Pin Connector, black -T16h-
C
12-Pin Connector, red -T12h-
