Testing if display approx. 140.0° C:

-- Disconnect the Engine Coolant Temperature (ECT) Sensor -G62- electrical harness connector -1-.

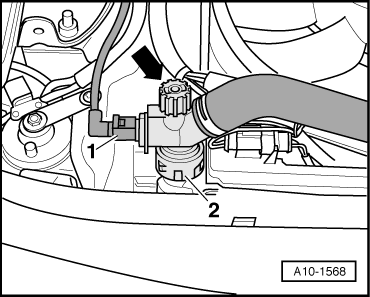

Fig 1: Identifying Engine Coolant Temperature (ECT) Sensor (On Radiator) Electrical Harness Connector
GWWA10-1568Courtesy of AUDI OF AMERICA, LLC

If indication jumps to approx. -40.0° C:

-- End diagnosis and switch ignition off.

-- Replace theEngine Coolant Temperature (ECT) Sensor - G62-.

If indication remains at approx. 140.0° C:
