Vehicle Position System Interface Control Module -J843-, Removing

Removing vehicle position system interface control module -J843-

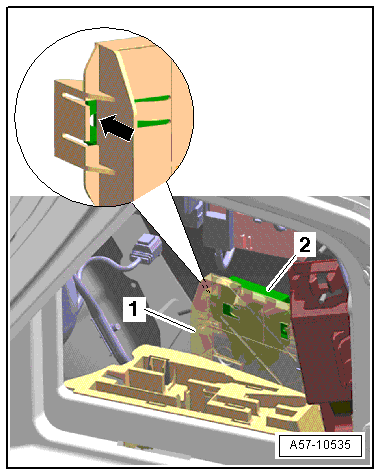

Fig 1: Vehicle Positioning System Interface Control Module -J843-, Removing And Installing

Courtesy of AUDI OF AMERICA, LLC

-- Press the tabs -arrow- on the bracket -1- and lift the Vehicle Positioning System Interface Control Module -J843- -2- out of the rear side of the bracket.

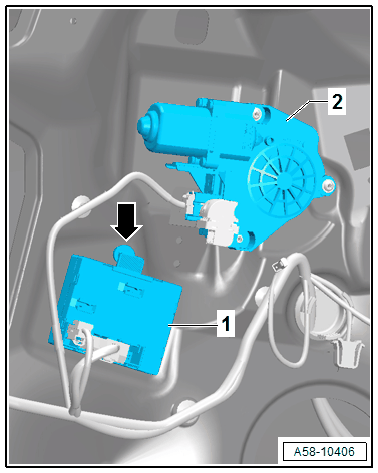

Fig 2: Driver Door Control Module -J386- And Right Front Door Control Module -J387-, Removing And Installing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM .

-- Window regulator motor -2-.

-- Disconnect the connector to the Right Front Door Control Module -J387-.

-- Press the retaining tab in the direction of the -arrow- and disengage the door control module -1- on the door shell.

-- To install, insert the door control module -1- into the lower mounting point, tilt the top inward and lock it in place.

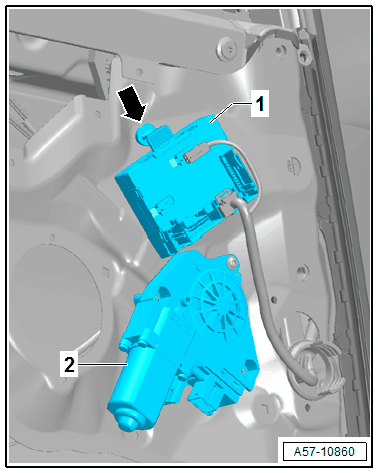

Fig 3: Left Rear Door Control Module -J388- And Right Rear Door Control Module -J389-, Removing And Installing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM .

-- Window regulator motor -2-.

-- Disconnect the connector to the Left Rear Door Control Module -J388-.

-- Press the retaining tab in the direction of the -arrow- and disengage the door control module -1- on the door shell.

-- To install, insert the door control module -1- into the lower mounting point, tilt the top inward and lock it in place.
