Memory Seat/Steering Column Adjustment Control Module -J136- OR Front Passenger Memory Seat Control Module -J521- OVERVIEW

NOTE:

For clarity, the surrounding area is not shown in the illustration.

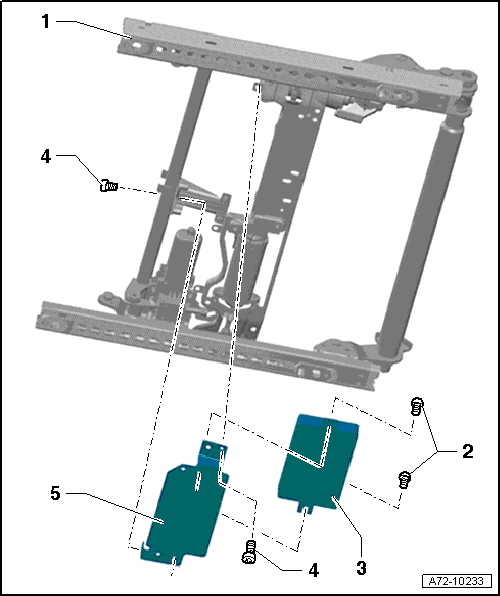

Fig 1: Identifying Memory Seat/Steering Column Adjustment Control Module J136 Or J521 - Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Front Seat
   • Removing and installing, refer to FRONT SEAT .
2. Bolt
   • 3.5 Nm
   • Quantity: 2
3. Memory Seat/Steering Column Adjustment Control Module -J136- or Front Passenger Memory Seat Control Module -J521-
   • Removing and installing, refer to MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE OR PASSENGER MEMORY SEAT CONTROL MODULE .
4. Bolt
   • 3.5 Nm
   • Quantity: 2
5. Bracket
   • Removing and installing, refer to MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE OR PASSENGER MEMORY SEAT CONTROL MODULE .
