Throttle Position Sensor/Accelerator Pedal Position Sensor 2, Checking

Special tools and workshop equipment required

• Multimeter.
• Wiring diagram

Test requirements

• The Motronic Engine Control Module (ECM) - J623- fuses OK.
• Battery voltage at least 12.5 volts.
• All electrical consumers such as, lights and rear window defroster, switched off.
• Vehicles with automatic transmission, shift selector lever into position "P" or "N".
• A/C switched off.
• Ground (GND) connections between engine/transmission/chassis OK.

Test sequence

-- Remove the drivers side storage compartment. Refer to Removal and Installation .

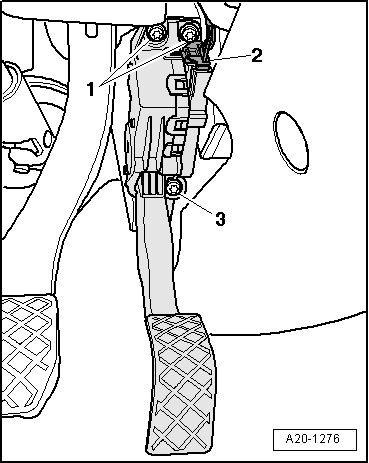

-- Disconnect the Throttle Position (TP) Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185- electrical harness connector -2-.

Checking voltage supply and wiring

-- Switch the ignition on.

-- Using a Multimeter --, check the following wiring connections for voltage.

Throttle Position (TP) Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185- electrical harness connector terminal	Specified value
1 to Ground (GND)	about 5 V
1 to 5	about 5 V
2 to Ground (GND)	about 5 V
2 to 3	about 5 V

-- Switch the ignition off.

If the specification is not obtained:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

-- Install the test box. .

If the manufacturers test box is not being used. Perform the following step.

-- Remove the Motronic Engine Control Module (ECM) -J623-. Refer to ENGINE CONTROL MODULE, REMOVING AND INSTALLING .

-- Using a Multimeter --, check the Throttle Position (TP) Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185- electrical harness connector terminals to the Motronic Engine Control Module (ECM) -J623- electrical connector T94a for an open circuit according to wiring diagram.

Throttle Position (TP) Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185- electrical harness connector terminals	Motronic Engine Control Module (ECM) -J623- electrical connector T94a terminals or test box socket
3	58
4	80
5	78
6	79
7	56
8	57

Specified value: 1.5 Ω max.

If the specification is not obtained:

-- Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).

-- Check the electrical harness connector for damage, corrosion, lose or broken terminals.

-- If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring and the voltage supply was OK:

-- Replace the Throttle Position (TP) Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185-. STORAGE COMPARTMENTS AND COVERS .

If no malfunction is detected in the wiring and if the voltage supply was not OK:

-- Replace the Motronic Engine Control Module (ECM) -J623-. Refer to ENGINE CONTROL MODULE, REMOVING AND INSTALLING .

Assembly is performed in the reverse order of removal.

-- Install the drivers side storage compartment. Refer to STORAGE COMPARTMENTS AND COVERS .

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .

-- End of diagnosis.
