Memory Seat/Steering Column Adjustment Control Module And Passenger Memory Seat Control Module Connector End View (J136, J521, T32a, T32b, T12i, T12m)

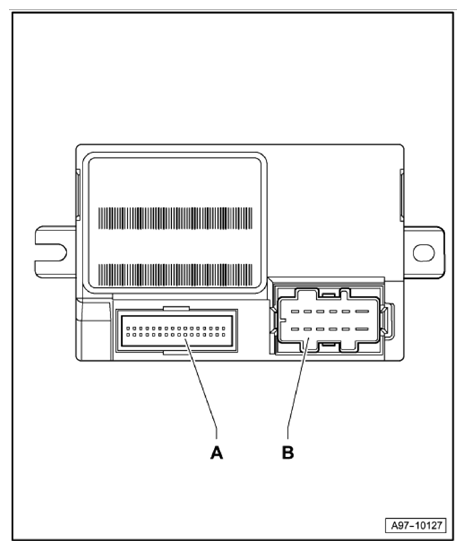

Fig 1: Memory Seat/Steering Column Adjustment Control Module And Passenger Memory Seat Control Module Connector End View (J136, J521, T32a, T32b, T12i, T12m)
G10359761Courtesy of AUDI OF AMERICA, LLC
A 32-Pin Connector -T32a-/-T32b-
B 12-Pin Connector -T12I-/-T12m-
