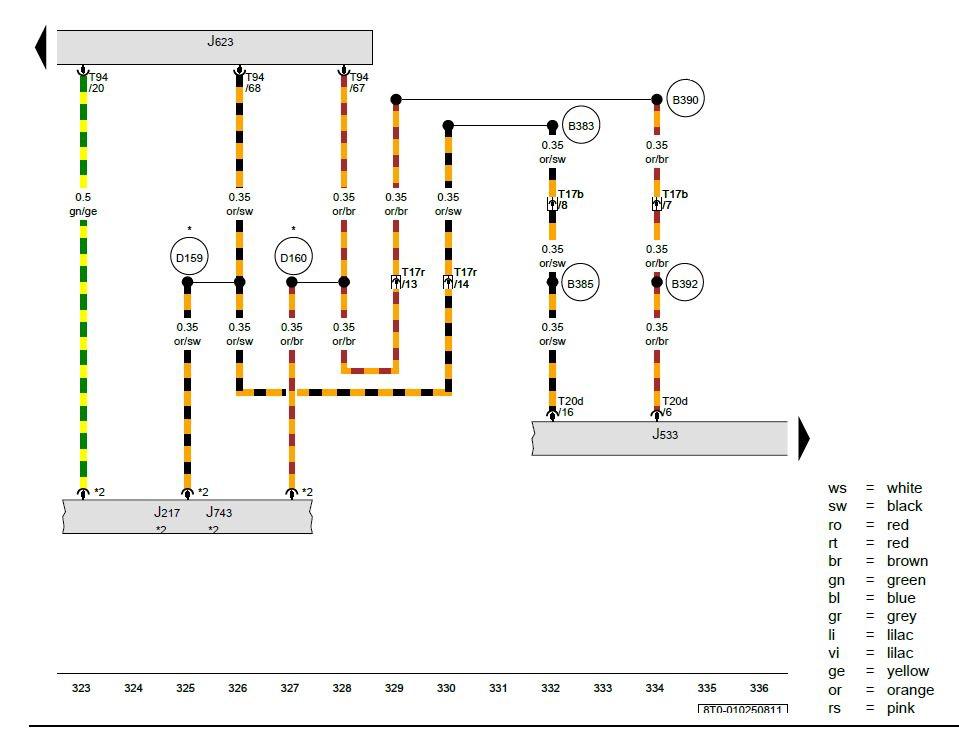

Transmission Control Module, Data Bus On Board Diagnostic Interface, Engine Control Module: Notes

G00581281Courtesy of AUDI OF AMERICA, LLC
