Towing Recognition Control Module Connector End View (J345, T16f, T12n, T12o)

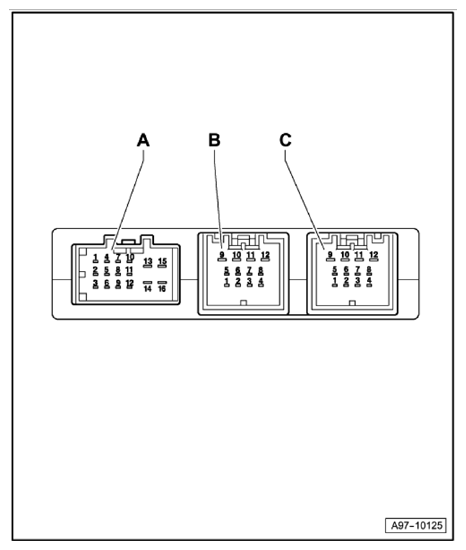

Fig 1: Towing Recognition Control Module Connector End View (J345, T16f, T12n, T12o)
G10359757Courtesy of AUDI OF AMERICA, LLC
A 16-Pin Connector, black -T16f-
B 12-Pin Connector, red -T12n-
C 12-Pin Connector, blue -T12o-
